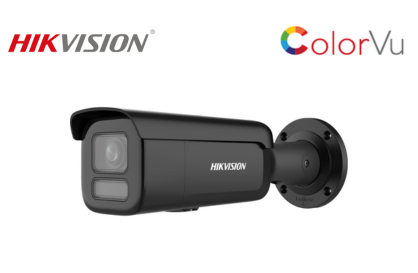

HIKVISION 6 MP Smart Hybrid Light with ColorVu Motorized Varifocal Bullet Network Camera…
6 MP Smart Hybrid Light with ColorVu Motorized Varifocal Bullet Network Camera
- High quality imaging with 6 MP resolution
- Smart Hybrid Light: advanced technology with long range
- Clear imaging against strong back light due to 130 dB WDR technology
- Efficient H.265+ compression technology
- Motorized varifocal lens for easy installation and monitoring
- Focus on human and vehicle classification based on deep learning
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Datasheet
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max. Resolution: 3200 × 1800
- Minimum Illumination:
- Color: 0.0028 Lux @ (F1.2, AGC ON)
- 0 Lux with light
Shutter Time
- 1/3 s to 1/100,000 s
Day & Night
- IR cut filter
Angle Adjustment
- Pan: 0° to 355°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens Details
Lens Type
- Varifocal, motorized lens (2.8 to 12 mm)
Focal Length & Field of View (FOV)
- Horizontal FOV: 112.3° to 41.2°
- Vertical FOV: 58.1° to 23.1°
- Diagonal FOV: 137.4° to 47.3°
Lens Mount
- Integrated
Iris Type
- Fixed
Aperture
- F1.2
Depth of Field
- 1 m to ∞
DORI (Detection, Observation, Recognition, Identification)
| Distance Type | Wide | Tele |
|---|---|---|
| Detection (D) | 74.3 m | 183.3 m |
| Observation (O) | 29.5 m | 72.8 m |
| Recognition (R) | 14.9 m | 36.7 m |
| Identification (I) | 7.4 m | 18.3 m |
Illuminator
Supplement Light Type
- IR, White Light
Range
- Up to 60 m
Smart Supplement Light
- Yes
IR Wavelength
- 850 nm
Video Specifications
Main Stream
- 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Compression Formats
- Main Stream: H.265/H.264/H.264+/H.265+
- Sub-Stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264
Video Bit Rate
- 32 Kbps to 16 Mbps
Audio
Compression Formats
- G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Bit Rate
- 64 Kbps to 320 Kbps (based on format)
Sampling Rate
- 8 kHz to 48 kHz
Environment Noise Filtering
- Yes
Network
Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP
Simultaneous Live View
- Up to 6 channels
Security
- Password protection, HTTPS encryption, 802.1X authentication, watermarking, and more
Image Features
Wide Dynamic Range (WDR)
- 130 dB
Enhancement
- BLC, HLC, 3D DNR
Privacy Masking
- 4 programmable polygon masks
Day/Night Switch
- Day, Night, Auto, Schedule
Interface
Ethernet
- 1 RJ45 10M/100M self-adaptive
Audio
- Input: 1 line in
- Output: 1 line out
Alarm
- 1 input, 1 output
On-Board Storage
- MicroSD/microSDHC/microSDXC, up to 512 GB
General Features
Power
- 12 VDC ± 25%, 1.21 A, max. 14.5 W
- PoE: IEEE 802.3at, Class 4, max. 18 W
Material
- Metal construction
Dimensions
- 298 mm × 97.9 mm × 95.7 mm
Operating Conditions
- -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95%
Languages
- Supports 33 languages
Compliance
Certifications
- EMC: CE-EMC, EN 55032
- Safety: UL 62368-1, CE-LVD
- Environment: CE-RoHS
Protection Ratings
- IP67 (Waterproof)
- IK10 (Vandal-resistant)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
