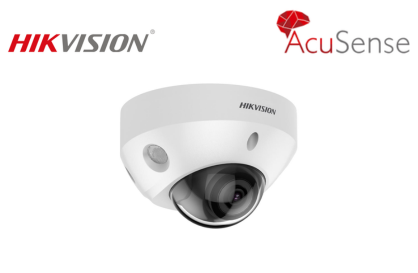

HIKVISION DS-2CD2586G2-IS (4mm) 8 MP AcuSense Fixed Mini Dome Network Camera
8 MP AcuSense Fixed Mini Dome Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Focusing on human and vehicle classification based on deep learning
- Clear imaging against strong back light due to 120 dB WDR technology
- Efficient H.265+ compression technology
- -S: audio and alarm interface available
- Water and dust resistant (IP67) and vandal resistant (IK08)
- Datasheet
Camera Specifications
Image Sensor
- 1/1.8″ Progressive Scan CMOS
- Max Resolution: 3840 × 2160
-
Min. Illumination:
- Color: 0.003 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
-
Angle Adjustment:
- Pan: -30° to 30°
- Tilt: 0° to 75°
- Rotate: 0° to 360°
Lens
- Type: Fixed focal lens (2.8 mm and 4 mm optional)
-
Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal 110°, Vertical 56.7°, Diagonal 134.1°
- 4 mm: Horizontal 88°, Vertical 49.9°, Diagonal 100.4°
- Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
-
Depth of Field:
- 2.8 mm: 2.2 m to ∞
- 4 mm: 2.6 m to ∞
DORI (Detection, Observation, Recognition, Identification)
-
2.8 mm:
- Detection: 89 m
- Observation: 35 m
- Recognition: 18 m
- Identification: 9 m
-
4 mm:
- Detection: 99 m
- Observation: 39 m
- Recognition: 20 m
- Identification: 10 m
Illuminator
- Supplement Light Type: IR
- Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
-
Main Stream:
- 50 Hz: 25 fps at 3840 × 2160 and lower resolutions
- 60 Hz: 24 fps at 3840 × 2160; 30 fps at lower resolutions
-
Sub-Stream:
- 50 Hz: 25 fps (up to 1280 × 720)
- 60 Hz: 30 fps (up to 1280 × 720)
-
Third Stream:
- 50/60 Hz: 10 fps (up to 1920 × 1080)
-
Video Compression:
- Main Stream: H.265/H.264/H.265+/H.264+
- Sub/Third Stream: H.265/H.264/MJPEG
- Bit Rate: 32 Kbps to 16 Mbps
-
Profiles:
- H.264: Baseline/Main/High Profile
- H.265: Main Profile
Audio
- Environment Noise Filtering: Yes
- Sampling Rate: 8–48 kHz
- Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
- Bit Rate: 8 to 320 Kbps (format-dependent)
Network
- Simultaneous Live View: Up to 6 channels
- API Support: ONVIF (Profile S/G/T), ISAPI, SDK
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, IPv4/IPv6, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket
- Users: Up to 32, with 3 user levels (Admin, Operator, User)
Smart Features
- Events: Motion detection, tampering, exceptions
- Linkage: FTP/NAS upload, email alerts, recording triggers
- Deep Learning: Face capture, perimeter protection
General
-
Power:
- 12 VDC ± 25% or PoE (802.3af)
- Max Consumption: 8 W
- Material: Aluminum base, plastic cover
- Dimensions: Ø113.6 mm × 72.6 mm
- Weight: 400 g (635 g with package)
- Protection: IP67, IK08
- Operating Conditions: -30°C to 60°C, 95% humidity (non-condensing)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
