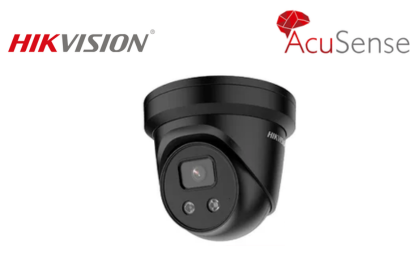

HIKVISION DS-2CD2386G2-ISU/SL-BLK (2.8mm) 4K AcuSense Strobe Light and Audible Warning…

HIKVISION DS-2CD2386G2-ISU/SL-BLK (2.8mm) 4K AcuSense Strobe Light and Audible Warning…
Regular price $372.53

4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera

  • High quality imaging with 8 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Active strobe light and audio alarm to warn intruders off
  • Provide real-time security via built-in two-way audio
  • Water and dust resistant (IP67)
  • Datasheet



Camera

Specification Details
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Wide Dynamic Range 120 dB
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360°
Max. Resolution 3840 × 2160

Lens

Specification Details
Lens Type Fixed focal lens, 2.8 mm, 4 mm, and 6 mm optional
Iris Type Fixed
Focal Length & FOV 2.8 mm: Horizontal: 111°, Vertical: 59°, Diagonal: 131°
4 mm: Horizontal: 87°, Vertical: 47°, Diagonal: 102°
6 mm: Horizontal: 51°, Vertical: 28°, Diagonal: 60°
Aperture F1.6
Lens Mount M12

DORI Distances

Focal Length Detection (D) Observation (O) Recognition (R) Identification (I)
2.8 mm 89.2 m 35.4 m 17.8 m 8.9 m
4 mm 99.4 m 39.4 m 19.9 m 9.9 m
6 mm 140.0 m 55.6 m 28.0 m 14.0 m

Illuminator

Specification Details
Supplement Light Type IR
IR Range Up to 30 m
IR Wavelength 850 nm
Smart Supplement Light Yes
Visual Alarm Yes

Video

Specification Details
Max. Resolution 3840 × 2160
Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160), 30 fps (other resolutions)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (same resolutions)
Third Stream 50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main Stream: H.265/H.264/H.264+/H.265+
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264
Bit Rate 32 Kbps–16 Mbps

Audio

Specification Details
Audio Type Mono sound
Noise Filtering Yes
Sampling Rate 8 kHz–48 kHz
Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Bit Rate 64 Kbps–320 Kbps

Network

Specification Details
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, G, T), ISAPI, SDK
Storage MicroSD/SDHC/SDXC (up to 256 GB), NAS, ANR
Client Software iVMS-4200, Hik-Connect, Hik-Central
Web Browser IE 10+, Chrome 57.0+, Firefox 52.0+

General

Specification Details
Power Supply 12 VDC ± 25%, PoE (802.3af, Class 3)
Power Consumption Max. 9 W (12 VDC), Max. 10 W (PoE)
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% (non-condensing)
Material Metal (except trim ring)
Dimensions Ø138.3 mm × 124.5 mm
Weight Approx. 840 g (1.9 lb.)
Certifications EMC, UL, CB, CE-RoHS, IP67

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty


4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera

  • High quality imaging with 8 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Active strobe light and audio alarm to warn intruders off
  • Provide real-time security via built-in two-way audio
  • Water and dust resistant (IP67)
  • Datasheet



Camera

Specification Details
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Wide Dynamic Range 120 dB
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360°
Max. Resolution 3840 × 2160

Lens

Specification Details
Lens Type Fixed focal lens, 2.8 mm, 4 mm, and 6 mm optional
Iris Type Fixed
Focal Length & FOV 2.8 mm: Horizontal: 111°, Vertical: 59°, Diagonal: 131°
4 mm: Horizontal: 87°, Vertical: 47°, Diagonal: 102°
6 mm: Horizontal: 51°, Vertical: 28°, Diagonal: 60°
Aperture F1.6
Lens Mount M12

DORI Distances

Focal Length Detection (D) Observation (O) Recognition (R) Identification (I)
2.8 mm 89.2 m 35.4 m 17.8 m 8.9 m
4 mm 99.4 m 39.4 m 19.9 m 9.9 m
6 mm 140.0 m 55.6 m 28.0 m 14.0 m

Illuminator

Specification Details
Supplement Light Type IR
IR Range Up to 30 m
IR Wavelength 850 nm
Smart Supplement Light Yes
Visual Alarm Yes

Video

Specification Details
Max. Resolution 3840 × 2160
Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160), 30 fps (other resolutions)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (same resolutions)
Third Stream 50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main Stream: H.265/H.264/H.264+/H.265+
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264
Bit Rate 32 Kbps–16 Mbps

Audio

Specification Details
Audio Type Mono sound
Noise Filtering Yes
Sampling Rate 8 kHz–48 kHz
Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Bit Rate 64 Kbps–320 Kbps

Network

Specification Details
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, G, T), ISAPI, SDK
Storage MicroSD/SDHC/SDXC (up to 256 GB), NAS, ANR
Client Software iVMS-4200, Hik-Connect, Hik-Central
Web Browser IE 10+, Chrome 57.0+, Firefox 52.0+

General

Specification Details
Power Supply 12 VDC ± 25%, PoE (802.3af, Class 3)
Power Consumption Max. 9 W (12 VDC), Max. 10 W (PoE)
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% (non-condensing)
Material Metal (except trim ring)
Dimensions Ø138.3 mm × 124.5 mm
Weight Approx. 840 g (1.9 lb.)
Certifications EMC, UL, CB, CE-RoHS, IP67

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
