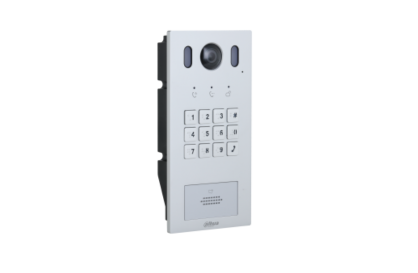

Dahua DHI-VTO3222E-P 2-wire IP Villa Door Station
Regular price
$156.00
-
Highly durable and elegant: Made of aluminum panel with a mechanical keypad.
-
2MP HD Camera
-
User Capacity: Supports up to 5,000 users and 10,000 cards.
-
Unlock Methods: Allows multiple unlock methods including password, IC card, and remote unlock.
-
Connectivity: Connects card readers and controllers through Wiegand protocol.
-
Power Supply: Provides 12 VDC, 600 mA power.
-
Weatherproofing: IP65 rated (silicone sealant is required for the shell; refer to the quick start guide).
-
Vandal Resistance: IK08 rated.
-
PoE Compatibility: Standard PoE power supply. If the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch compliant with the 802.3.at standard.
System
- Main Processor: Embedded Processor
- Operating System: Embedded Linux OS
- Button Type: Mechanical
- Number of Buttons: 12
Basic Features
- Camera: 1/2.9" 2 MP CMOS
- Field of View: Horizontal: 140°, Vertical: 80°, Diagonal: 160°
- WDR (Wide Dynamic Range): 120 dB
- Noise Reduction: 3D NR
- Video Compression: H.264, H.265
-
Video Resolution:
- Main stream: 720p, WVGA, D1, CIF
- Sub stream: 1080p, WVGA, D1, QVGA, CIF
- Video Frame Rate: 25 fps
- Light Compensation: Auto white light
- Day/Night Mode: Color/B/W
Audio
- Audio Compression: G.711a, G.711u, PCM
- Audio Input: 1
- Audio Output: Built-in Speaker
- Audio Mode: Two-way audio
- Audio Enhancement: Echo suppression and digital noise reduction
- Audio Bit Rate: 16 kHz, 16 bit
Functions
- Communication Mode: Digital 2-wire
- Unlock Mode: Card swiping, password, remote
- Card Type: Mifare card
- Auto Snapshot: Yes (requires SD card in VTH or FTP server for VTO)
- Leave Videos: Yes (requires SD card in indoor monitor or door station)
- Storage: Supports Micro SD card (up to 256 GB)
- Web Configuration: Yes
RFID
- Modulation Type: AM
- Frequency Range: 13.56 MHz
- Max. Transmission Power: 42 dBuA/m @10 m
Performance
- Card Reading Distance: 0–3 cm (0"–1.18")
- Casing Material: Aluminum
Capacity
- Card Capacity: 10,000
Ports
- RS-485: 1
- Wiegand: 1
- Alarm Input: 1
- Alarm Output: 1
- Power Output: 1 port, 12 V/600 mA
- Door Bell: 1
- Exit Button: 1
- Lock Control: 1
- Network Port: 1 × RJ-45, 10 Mbps/100 Mbps
Alarm
- Tamper Alarm: Yes
General
- Appearance Color: Silver
- Power Supply: 48 VDC, 0.4 A, PoE (802.3af/at)
- Power Adapter: Optional
- Installation: Flush Mount; Surface Mount
- Certifications: CE
- Accessory: Flush mount box (optional), Surface mount box (optional)
- Product Dimensions: 200.0 mm × 98.0 mm × 35.4 mm (7.87" × 3.86" × 1.39")
- Protection: IK08, IP65 (silicone sealant required; see quick start guide)
Operating Conditions
- Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity: 10%–90% RH, non-condensing
- Operating Environment: Outdoor
- Operating Altitude: Up to 3,000 m (9,842.52 ft)
Power and Weight
- Power Consumption: ≤ 5 W (standby), ≤ 7 W (working)
- Gross Weight: 692 g (1.53 lb)
Storage Conditions
- Storage Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
- Storage Humidity: 30%–75% RH
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
