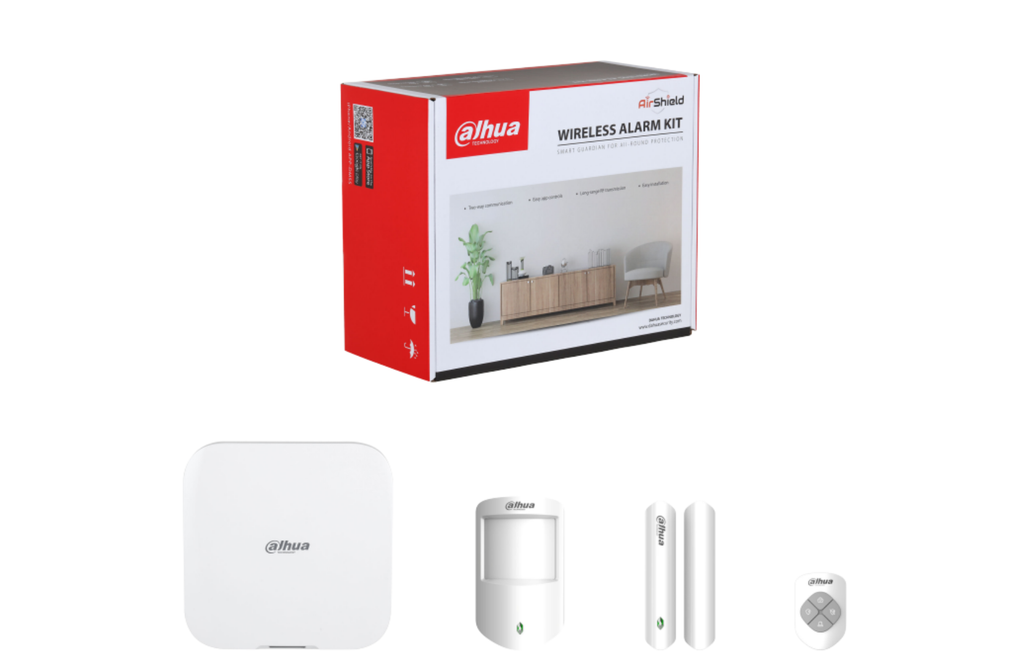

Dahua DHI-ART-ARC3800H-03-W2 Dahua Wireless Alarm KIT
Regular price
$550.00
Dahua Wireless Alarm Kit – Specifications
Key Features
-
Supports alarm video verification through integration of IPC with the hub.
-
Fast remote image transfer from PIR-Cam to the app.
-
Built-in voice call alarm.
-
Supports wired and AP network configuration for easy hub setup and switching.
-
Multi-network redundancy: Ethernet, Wi-Fi and 4G for reliable connectivity.
-
Two-way communication with frequency hopping for stable wireless performance.
-
Cloud update for hub and all wireless peripherals.
-
Dual backup system with auto-recovery on update failure.
Specifications
Port & Network
Wireless Zone Capacity
Hub supports up to:
-
150 wireless peripherals
-
6 sirens
-
64 PIR cameras (max 8 indoor PIR cams)
-
64 keyfobs
-
8 keypads
-
4 repeaters
Network Mode
-
Ethernet, Wi-Fi, Cellular (dual SIM supported; only one active at a time)
Network Port
-
1 × RJ-45 (10/100 Mbps)
Built-In Battery
-
4,750 mAh rechargeable lithium
Video & Audio
-
Video Input: 8-ch IPC (alarm video upload only)
-
Audio Output: 1 channel
-
Volume Control: Supported
-
Voice Broadcast: Via telephone & local speaker
Functions
Indicator Lights
-
Hub: Shows alarms, arm/disarm, network status, failures
-
Keyfob: Dual-color indicator (Green = normal / Red = abnormal)
-
Door Detector: Green alarm indicator
-
PIR Detector: Green alarm indicator
Buttons
-
Hub: Reset, Voltage, AP switch
-
Keyfob: Home / Away / Disarm / SOS
-
Door Detector: Power switch
-
PIR Detector: Power switch
Communication & Alerts
-
SMS: Up to 5 numbers
-
Phone Call: Up to 5 numbers
-
Video Linkage: Supported
-
Offline Cache: Stores up to 50 alarm messages
-
Arm/Disarm: App, Keypad, Remote, Card, Schedule
-
Remote Update: Cloud (all devices)
-
Low Battery Detection: Yes (all)
-
Tamper Protection: Hub, Door Detector, PIR Detector
User Management
-
App users: 33 (31 general, 1 admin, 1 installer)
-
Keypad users: 32
-
Logs: Up to 5,000 entries
Environmental & Detection
Temperature Measuring Range
-
Door Detector: –15 °C to +65 °C
-
PIR Detector: –15 °C to +65 °C
Sensors
-
Door: Reed switch
-
PIR: Dual-element low-noise PIR
PIR Detection
-
Mode: PIR
-
Sensitivity: 3 levels
-
Range: 12 m (90°) @ 2.2 m install height
-
Speed: 0.3–3 m/s
-
Pet Immunity: ≤18 kg
-
White Light Resistance: 2000 lx
-
Digital Temp Compensation: Yes
Wireless
-
Carrier Frequency: 433.1–434.6 MHz
-
Transmitter Power: ≤10 mW
-
Communication: Two-way
-
Communication Distance:
-
Hub: up to 1400 m
-
Keyfob: up to 500 m
-
Door Detector: 1000 m
-
PIR: 1200 m
-
-
Encryption: AES128
-
Frequency Hopping: Yes
Power Supply
-
Hub: 100–240 VAC, 50/60 Hz
-
Keyfob: CR2032
-
Door Detector: CR123A
-
PIR Detector: CR123A
Battery Life
-
Hub: Up to 12 hours backup
-
Keyfob: 3 years
-
Door Detector: 4 years
-
PIR Detector: 4 years
Power Consumption
-
Hub:
-
Max: 220 VAC 80 mA
-
Standby: 220 VAC 40 mA
-
-
Keyfob: 40 mA max, 0.5 μA standby
-
Door Detector: 42 mA max, 29 μA standby
-
PIR Detector: 44 mA max, 34 μA standby
Environmental
-
Operating Temp: –10 °C to +55 °C
-
Humidity: 10%–90% RH
-
Storage Temp: –10 °C to +55 °C
-
Storage Humidity: 10%–90% RH
-
Anti-corrosion Level: Basic Protection
Dimensions & Weight
Product Dimensions
-
Hub: 174.8 × 174.8 × 38.3 mm
-
Keyfob: 60 × 39.5 × 15 mm
-
Door Detector: 100.2 × 20.8 × 20.3 mm
-
PIR Detector: 104 × 60 × 50 mm
Net Weight
-
Hub: 510 g
-
Keyfob: 20 g
-
Door Detector: 70 g
-
PIR Detector: 100 g
Gross Weight
-
Kit: 1.46 kg
Packaging Size
-
270 × 218 × 122 mm
Installation
-
Hub: Wall mount or desktop mount
-
Door Detector: Bracket mount
-
PIR Detector: Wall mount
Casing & Certifications
-
Material: PC + ABS
-
Certification: CE
Wi-Fi
-
Standard: IEEE 802.11 b/g/n
-
Range: 2400–2483.5 MHz
-
Transmission Power: ≤20 dBm
Cellular Network
Transmitter Power (EIRP)
-
4G: 23 dBm ±2
-
3G: 24 dBm +1/–3
-
2G:
-
GSM900/850: 30 dBm ±3
-
GSM1800/1900: 33 dBm ±3
-
Standards
-
GSM / WCDMA / LTE
Frequency Bands
EU Version (Example):
-
4G FDD-LTE: B1/B3/B7/B8/B20/B28A
-
4G TDD-LTE: B38/B40/B41
-
3G WCDMA: B1/B8
-
2G GSM: 900/1800 MHz
LM Version:
-
4G FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28
-
4G TDD-LTE: B40
-
3G WCDMA: B1/B2/B4/B5/B8
-
2G GSM: 850/900/1800/1900 MHz
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
