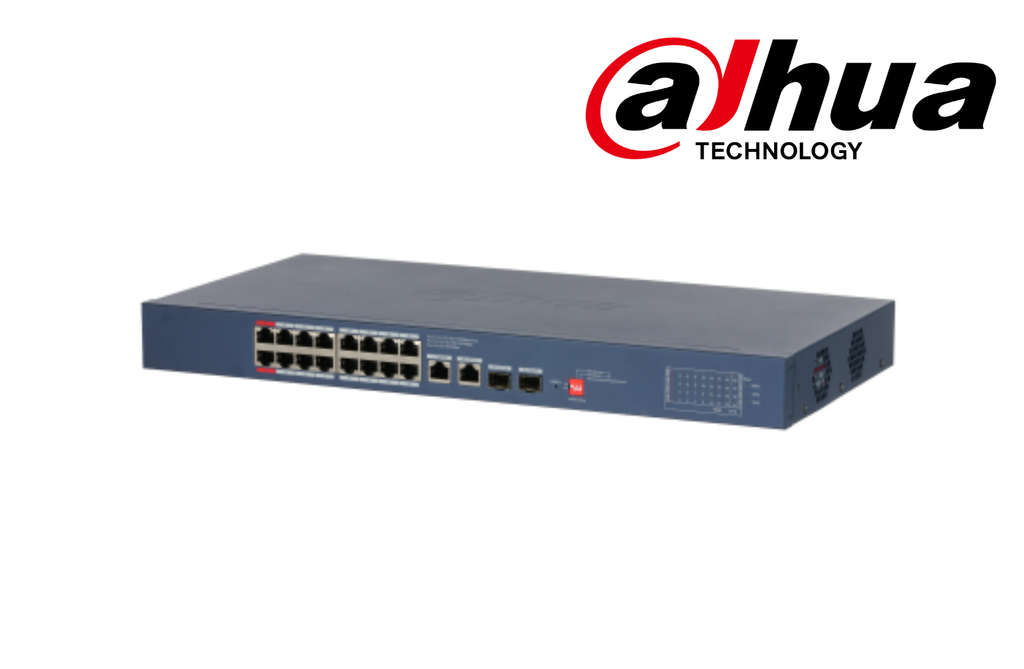

Dahua CS4220-16GT-190 20-Port Cloud Managed Desktop Gigabit Switch with 16-Port POE
Regular price
$424.28
20-Port Cloud-Managed Desktop Gigabit Switch with 16-Port PoE
Key Features
-
16 × Gigabit PoE RJ-45 ports, 2 × Gigabit RJ-45 uplink ports, 2 × Gigabit SFP uplink ports
-
190 W total PoE budget
-
IEEE 802.3af/at on all PoE ports
-
Additional IEEE 802.3bt / Hi-PoE support on red ports
-
-
DIP switch for quick enable/disable of:
-
Cloud-Managed Mode
-
PoE Watchdog
-
Long Distance PoE
-
-
Wide operating temperature: –10 °C to +55 °C
-
Supports VLAN, STP, RSTP, and Link Aggregation
-
Web-managed and centralized cloud management via DoLynk App
-
Real-time network monitoring
-
Plug-and-play auto detection and easy system setup
- Datasheet
Basic Specifications
| Item | Specification |
|---|---|
| Switching Layer | Layer 2 |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.76 Mpps |
Port Configuration
| Port | Description |
|---|---|
| Ports 1–16 | 16 × RJ-45 10/100/1000 Mbps (PoE) |
| Ports 17–18 | 2 × RJ-45 10/100/1000 Mbps (Uplink) |
| Ports 19–20 | 2 × SFP 1000 Mbps (Uplink) |
Environmental
| Item | Specification |
|---|---|
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% RH, non-condensing |
| Storage Temperature | –40 °C to +75 °C (–40 °F to +167 °F) |
| Storage Humidity | 5%–95% RH, non-condensing |
Power
| Item | Specification |
|---|---|
| Power Supply | Built-in, 100–240 VAC, 47–63 Hz |
| Max Input Current | 4 A |
| Power Consumption | Idle: 10.6 W / Full Load: 202.8 W |
Protection
| Item | Rating |
|---|---|
| ESD Protection | Air: 8 kV / Contact: 6 kV |
| Lightning Protection | Common Mode: 6 kV / Differential Mode: 1 kV |
Physical
| Item | Specification |
|---|---|
| Net Weight | 2.5 kg (5.51 lb) |
| Gross Weight | 3.2 kg (7.05 lb) |
| Product Dimensions | 440 × 228.81 × 43.65 mm |
| Packaging Dimensions | 540 × 342 × 90 mm |
| Casing Material | Sheet metal |
| Installation | Desktop mount / Rack mount |
Certifications
-
CE
PoE Specifications
| Item | Specification |
|---|---|
| PoE Support | Yes |
| PoE Budget | Total ≤ 190 W |
| Per-Port Output | Ports 1–2 ≤ 90 W; Ports 3–16 ≤ 30 W |
| PoE Protocols | IEEE 802.3af / 802.3at / IEEE 802.3bt / Hi-PoE |
| PoE Management | Power on/off, overload protection |
| Long Distance PoE | Yes (up to 250 m @ 10 Mbps) |
PoE Pin Assignment
-
Ports 1–2:
-
1,2,4,5 (V+) / 3,6,7,8 (V−)
-
-
Ports 3–16:
-
1,2 (V+) / 3,6 (V−)
-
Hardware
DIP Switch Functions
-
Managed Mode
-
ON (default): Local web + cloud management
-
OFF: Unmanaged mode
-
-
PoE Watchdog
-
Monitors ports 1–16
-
Auto-restarts PoE after 2 minutes of no traffic
-
Only works when Managed Mode is OFF
-
-
Extend Mode
-
Ports 1–16 up to 250 m @ 10 Mbps
-
Only works when Managed Mode is OFF
-
| Item | Specification |
|---|---|
| Reset Button | 1 |
Performance
| Item | Specification |
|---|---|
| MTBF | 1,092,753 hours |
| Packet Buffer | 4 Mbit |
| Jumbo Frame | 15,360 Bytes |
| MAC Address Table | 8K |
Network Features
| Feature | Support |
|---|---|
| Communication Standards | IEEE 802.3 / 802.3u / 802.3x / 802.3ab / 802.3z / 802.3az / 802.3ad |
| VLAN | IEEE 802.1Q, up to 32 VLANs |
| Loop Protection | STP, RSTP |
| Link Aggregation | Static Aggregation |
| Port Control | Flow Control, Storm Control, MAC+Port Binding |
| Port Mirroring | Local / N:1 |
| LLDP | Supported |
| DHCP | DHCP Client |
| Security | Port Isolation |
Management
-
Web Management
-
Cloud Management
-
Logs
-
Fault Alarms
Package Contents
-
1 × User Manual
-
1 × Legal & Regulatory Information
-
1 × Power Cord
-
1 × Rack-Mounting Kit
Optional SFP Modules
| Model | Description |
|---|---|
| GSFP-1310T-20-SMF | 1.25G, 1310/1550 nm, 20 km, LC, Single-mode |
| GSFP-1310R-20-SMF | 1.25G, 1550/1310 nm, 20 km, LC, Single-mode |
| GSFP-1310-20-SMF | 1.25G, 1310 nm, 20 km, LC, Single-mode |
| GSFP-850-MMF | 1.25G, 850 nm, 550 m, LC, Multi-mode |
PoE Transmission Performance
Switch power supply: 54 V | Cable: CAT6, DC resistance < 8 Ω / 100 m
IEEE 802.3bt (90 W)
| Distance (m) | Load Capacity (W) |
|---|---|
| 100 | 71.3 |
| 150 | 62 |
| 200 | 51 |
| 250 | 40 |
Hi-PoE (60 W)
| Distance (m) | Load Capacity (W) |
|---|---|
| 100 | 46 |
| 150 | 42 |
| 200 | 37 |
| 250 | 32 |
IEEE 802.3at (30 W)
| Distance (m) | Load Capacity (W) |
|---|---|
| 100 | 25.5 |
| 150 | 25.5 |
| 200 | 25.5 |
| 250 | 24 |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
