HiLook IP Video Intercom Kit
Regular price
$411.00
Features

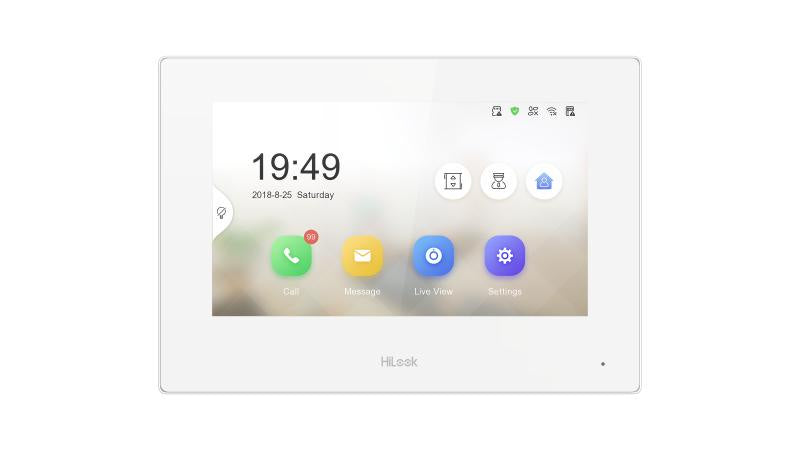

- Indoor station: 7-inch touch screen, user-friendly interface, Plug & Play
- Indoor station: Easy, cost-efficient installation, Wifi & POE Supported
- Indoor station: Receives video call and unlocks on mobile App anywhere, any time
- Indoor station: Supports live view of up to 16 IP cameras
- Door station: High-quality imaging with 2MP resolution
- Door station: Easy, cost-efficient installation, Wifi & POE Supported
- Door station: Easy configuration through the WEB interface
- Door station: IP65 water resistant, preventing water ingress for outdoor use
Specification
Door station/System parameters
- Operation system: Embedded Linux operation system
- Flash: 32 MB
- RAM: 256MB
Door station/Video parameters
- Camera: 2MP HD camera#
- Night vision: Low illumination IR supplement mode:3 m
- Backlight compensation: Support
- Digital noise reduction: Support
- WDR: True WDR
- Field of view: Horizontal: 131° Vertical: 78°
- Video Compression Standard: H.264
- Stream: Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
- Motion detection: Support
- Flash-avoid frequency: 50 Hz, 60 Hz
Door station/Audio Parameters
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Audio compression standard: G.711 U
- Audio compression Rate: 64 Kbps
- Audio intercom: Two-way audio communication
Door station/Network parameters
- Network protocol: TCP/IP, RSTP
- Wired network: 10/100 Mbps Ethernet
Door station/Device interfaces
- RS-485: 1
- Alarm input: 4
- Debugging port: 1
- Grounding: 1
- TAMPER switch: 1
Door station/General
- Power consumption:< 10 W
- Working temperature: -40° C to 53° C(-40° F to 127.4° F)
- Working humidity: 10% to 95%
- Dimension: 138 mm × 65 mm × 27 mm
- Installation: Surface mounting
- Protection level: IP65
- Indicator: 2
- Power supply: IEEE802.3af, standard PoE 12 VDC
Indoor station/System parameters
- Operation system: Embedded Linux operation system
- Memory: 128 MB
- Flash: 32 MB
Indoor station/Display Parameters
- Display screen: 7-inch colorful TFT screen
- Display resolution: 1024 × 600
- Operation method: Capacitive touch screen
Indoor station/Audio parameters
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Audio compression standard: G.711 U
- Audio compression Rate: 64 Kbps
Indoor station/Network parameters
- Wired network: 10/100 Mbps self-adaptive
- Wireless network: Wi-Fi 802.11 b/g/n
- Protocol: TCP/IP, SIP, RTSP
- RS-485: 1 RJ-45 10/100 Mbps self-adaptive
Indoor station/Device interfaces
RS-485: 1
Alarm input: 8-ch alarm inputs
Relay output: 2
TF card: Max to 32 G, SD 2.0 or lower version
Indoor station/General
- Power consumption: ≤ 6 W
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 10% to 90%
- Dimension (L x W x H): 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
