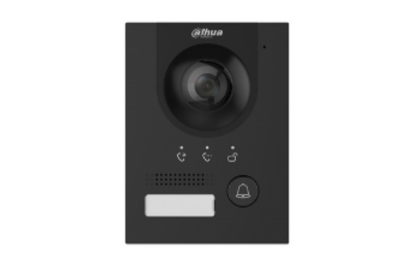

Dahua DHI-VTO2202FB-P-S3 2-wire IP Villa Door Station

$285.00

2-Wire IP Villa Door Station

Anodized aluminum front panel.
CMOS low illumination 2MP HD colorful 168.6° camera.
Video intercom function.
Provides 12 VDC, 600 mA power.
Mobile phone app for talking to visitors or unlocking the door remotely.
IK07 & IP65 rated (requires silicone sealant for the shell; refer to the quick start guide).
Supports surface and flush mounting.
Supports H.265 and H.264 video compression.
Standard PoE power supply (if the VTO device with 12 V power output charges a load, it must be connected to a PSE switch compliant with the 802.3.at standard).
Datasheet

System

Main Processor: Embedded Processor
Operating System: Embedded Linux Operating System
Button Type: Mechanical
Number of Buttons: 1
Interoperability: ONVIF, CGI

Network Protocols

IPv4, RTSP, UDP, DNS, P2P, UPnP, RTP, TCP, SIP

Basic Features

Camera: 1/2.9" 2 MP CMOS
Field of View: Horizontal: 168.6°, Vertical: 87.1°, Diagonal: 176.7°
WDR: 120 dB
Noise Reduction: 3D NR
Video Compression: H.265, H.264
Video Resolution:
- Main Stream: 720p, WVGA, D1, CIF
- Sub Stream: 1080p, WVGA, D1, QVGA, CIF
Video Frame Rate: 25 fps
Video Bit Rate: 256 Kbps to 8 Mbps
Light Compensation: Auto IR
Day/Night Mode: Auto(ICR)/Color/B/W, Color/B/W
Audio Compression: G.711a, G.711u, PCM
Audio Input: 1 channel
Audio Output: Built-in speaker
Audio Mode: Two-way audio
Audio Enhancement: Echo suppression, digital noise reduction
Audio Bit Rate: 16 kHz, 16 bits

Functionality

Communication Mode: Digital 2-wire
Unlock Mode: Remote
Leave Videos: Yes (requires SD card in the indoor monitor or door station)
Storage: Supports Micro SD card (up to 256 GB)
Web Configuration: Yes

Performance

Casing Material: Aluminum
Ports:
- RS-485: 1
- Alarm Output: 1
- Power Output: 1 port, 12 V/600 mA
- Exit Button: 1
- Door Status Detection: 1
- Lock Control: 1
- Network Port: 1 × RJ-45, 10/100 Mbps

Alarm

Tamper Alarm: Yes

General Information

Appearance Color: Black
Power Supply:
- Dahua 2-wire switch (max. power supply distance: 50 m)
- 48 VDC, 1 A; PoE (802.3af/at)
Power Adapter: Optional
Installation: Surface Mount
Certifications: CE
Accessories:
- Surface mount box (optional)
- Flush mount box (optional)
- Rain cover (optional)
Product Dimensions: 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
Protection: IK07, IP65
Operating Temperature: –30°C to +60°C (–22°F to +140°F)
Operating Humidity: 10%–90% RH, non-condensing
Operating Environment: Outdoor
Operating Altitude: 0 m–3000 m (0 ft–9842.52 ft)
Power Consumption: ≤4 W (standby), ≤5 W (working)
Gross Weight: 0.48 kg (1.06 lb)
Storage Temperature: 0°C to +40°C (+32°F to +104°F)
Storage Humidity: 30%–75% RH, non-condensing

Warranty: 3 Year Dahua ANZ Manufacturer Warranty
