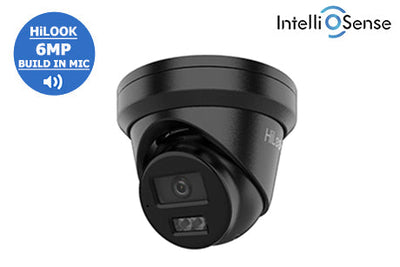

• High quality imaging with 6 MP resolution
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67) and vandal-resistant (IK10)
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS

• Max. Resolution: 3200 × 1800

• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°

Lens

• Lens Type: Fixed focal length, 2.8 mm

• Focal Length & FOV:

  • Horizontal FOV: 107°

  • Vertical FOV: 57°

  • Diagonal FOV: 128°

• Lens Mount: M12

• Iris Type: Fixed

• Aperture: F1.6

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm:

  • Detect: 73 m

  • Observe: 29 m

  • Recognize: 15 m

  • Identify: 7 m

Illuminator

• Supplement Light Type: IR

• Supplement Light Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream (50 Hz):

  • 20 fps (3200 × 1800)

  • 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream (50 Hz):

  • 25 fps (1280 × 720, 960 × 540, 640 × 480, 640 × 360)

• Third Stream (50 Hz):

  • 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Note: Third stream supported under certain settings

• Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline/Main/High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR/VBR

• SVC: H.264 and H.265

• ROI: 1 fixed region for main and sub-stream

Audio

• Compression: G.711ulaw/alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC

• Bit Rate:

  • 64 Kbps (G.711)

  • 16 Kbps (G.722.1, G.726)

  • 16–64 Kbps (AAC), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3)

• Sampling Rate: 8/16/32/44.1/48 kHz

• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

• Live View: Up to 6 channels

• API: ONVIF (Profile S, G), ISAPI, SDK

• Users: Up to 32 users (Admin, Operator, User)

• Security: HTTPS, IP filtering, security logs, TLS 1.1/1.2, digest/WSSE auth

Storage & Software

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browsers:

  • Plug-in Required: IE 10/11

  • Plug-in Free: Chrome 57+, Firefox 52+

  • Local Service: Chrome 57+, Firefox 52+


• Image Parameters Switch: Yes

• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance

• Day/Night Switch: Day, Night, Auto, Schedule

• WDR: 120 dB

• SNR: ≥ 52 dB

• Image Enhancement: BLC, HLC, 3D DNR

Interface

• Ethernet: 1 × RJ45 10M/100M self-adaptive

• Storage: MicroSD/SDHC/SDXC card up to 256 GB

• Microphone: Built-in

• Reset Key: Yes

Events

• Basic Events:

  • Motion detection (human/vehicle classification)

  • Video tampering, exception

• Smart Events:

  • Line crossing, intrusion (with classification)

  • Face detection

• Linkage: FTP/NAS/memory card upload, email, trigger recording/capture, notify center

General

• Power:

  • 12 VDC ±25%, 0.5 A, Max. 6 W

  • PoE: IEEE 802.3af, Class 3, Max. 7.5 W

• Dimensions: Ø121.4 mm × 92.2 mm (Ø4.8" × 3.7")

• Package Dimensions: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

• Weight: 550 g (1.2 lb); with package: 800 g (1.8 lb)

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH (non-condensing)

Language Support

• 33 Languages including English, Russian, French, German, Spanish, Portuguese (BR), Japanese, Korean, Chinese (Traditional), and more

Functions

• Anti-flicker, heartbeat, password reset via email, pixel counter

Certifications

• EMC: FCC, CE-EMC, RCM, IC, KC

• Safety: UL, CB, CE-LVD, BIS

• Environment: CE-RoHS, WEEE, REACH

• Protection: IP67 (IEC 60529), IK10 (IEC 62262)

• High quality imaging with 6 MP resolution
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67) and vandal-resistant (IK10)
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS

• Max. Resolution: 3200 × 1800

• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°

Lens

• Lens Type: Fixed focal length, 2.8 mm

• Focal Length & FOV:

  • Horizontal FOV: 107°

  • Vertical FOV: 57°

  • Diagonal FOV: 128°

• Lens Mount: M12

• Iris Type: Fixed

• Aperture: F1.6

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm:

  • Detect: 73 m

  • Observe: 29 m

  • Recognize: 15 m

  • Identify: 7 m

Illuminator

• Supplement Light Type: IR

• Supplement Light Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream (50 Hz):

  • 20 fps (3200 × 1800)

  • 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream (50 Hz):

  • 25 fps (1280 × 720, 960 × 540, 640 × 480, 640 × 360)

• Third Stream (50 Hz):

  • 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Note: Third stream supported under certain settings

• Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline/Main/High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR/VBR

• SVC: H.264 and H.265

• ROI: 1 fixed region for main and sub-stream

Audio

• Compression: G.711ulaw/alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC

• Bit Rate:

  • 64 Kbps (G.711)

  • 16 Kbps (G.722.1, G.726)

  • 16–64 Kbps (AAC), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3)

• Sampling Rate: 8/16/32/44.1/48 kHz

• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

• Live View: Up to 6 channels

• API: ONVIF (Profile S, G), ISAPI, SDK

• Users: Up to 32 users (Admin, Operator, User)

• Security: HTTPS, IP filtering, security logs, TLS 1.1/1.2, digest/WSSE auth

Storage & Software

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browsers:

  • Plug-in Required: IE 10/11

  • Plug-in Free: Chrome 57+, Firefox 52+

  • Local Service: Chrome 57+, Firefox 52+


• Image Parameters Switch: Yes

• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance

• Day/Night Switch: Day, Night, Auto, Schedule

• WDR: 120 dB

• SNR: ≥ 52 dB

• Image Enhancement: BLC, HLC, 3D DNR

Interface

• Ethernet: 1 × RJ45 10M/100M self-adaptive

• Storage: MicroSD/SDHC/SDXC card up to 256 GB

• Microphone: Built-in

• Reset Key: Yes

Events

• Basic Events:

  • Motion detection (human/vehicle classification)

  • Video tampering, exception

• Smart Events:

  • Line crossing, intrusion (with classification)

  • Face detection

• Linkage: FTP/NAS/memory card upload, email, trigger recording/capture, notify center

General

• Power:

  • 12 VDC ±25%, 0.5 A, Max. 6 W

  • PoE: IEEE 802.3af, Class 3, Max. 7.5 W

• Dimensions: Ø121.4 mm × 92.2 mm (Ø4.8" × 3.7")

• Package Dimensions: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

• Weight: 550 g (1.2 lb); with package: 800 g (1.8 lb)

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH (non-condensing)

Language Support

• 33 Languages including English, Russian, French, German, Spanish, Portuguese (BR), Japanese, Korean, Chinese (Traditional), and more

Functions

• Anti-flicker, heartbeat, password reset via email, pixel counter

Certifications

• EMC: FCC, CE-EMC, RCM, IC, KC

• Safety: UL, CB, CE-LVD, BIS

• Environment: CE-RoHS, WEEE, REACH

• Protection: IP67 (IEC 60529), IK10 (IEC 62262)

• High quality imaging with 6 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 120 dB WDR technology
• Focusing on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS

• Max. Resolution: 3200 × 1800

• Min. Illumination:

  • Color: 0.005 Lux @ (F1.6, AGC ON)

  • B/W: 0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°

Lens

• Lens Type: Fixed focal, 2.8 mm

• Focal Length & FOV:

  • 2.8 mm

  • Horizontal FOV: 107°

  • Vertical FOV: 57°

  • Diagonal FOV: 128°

• Lens Mount: M12

• Iris Type: Fixed

• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:

  • D: 73 m

  • O: 29 m

  • R: 15 m

  • I: 7 m

Illuminator

• Supplement Light Type: IR

• Range: Up to 40 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 20 fps (3200 × 1800)

  • 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:

  • 50 Hz: 25 fps (1280 × 720, 960 × 540, 640 × 480, 640 × 360)

• Third Stream:

  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Supported under certain settings

• Video Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline/Main/High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR/VBR

• Scalable Video Coding: H.264 and H.265

• ROI: 1 fixed region (main & sub stream)

Audio (Model -U Only)

• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC

• Bit Rate:

  • G.711ulaw/alaw: 64 Kbps

  • G.722.1 / G.726: 16 Kbps

  • AAC: 16–64 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

• Sampling Rate: 8/16/32/44.1/48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP(S), FTP, DHCP, DNS(DDNS), RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

• Simultaneous Live View: Up to 6 channels

• API Support: ONVIF (Profile S/G), ISAPI, SDK

• Users: Up to 32 (Administrator, Operator, User)

• Security:

  • Password protection

  • HTTPS encryption

  • IP filter

  • Security audit log

  • TLS 1.1/1.2

  • Digest & WSSE for ONVIF

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browsers:

  • Plug-in required: IE10/11

  • Plug-in free: Chrome 57+, Firefox 52+


• Parameter Switch: Yes

• Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance

• Day/Night Switch: Auto, Day, Night, Schedule

• WDR: 120 dB

• SNR: ≥ 52 dB

• Enhancements: BLC, HLC, 3D DNR

Interface

• Ethernet: 1× RJ45, 10/100 Mbps, self-adaptive

• On-Board Storage: microSD (up to 256 GB)

• Built-in Microphone: Yes (-U model)

• Reset Key: Yes

Events

• Basic Events:

  • Motion detection (human/vehicle classification)

  • Video tampering

  • Exception alerts

• Smart Events:

  • Line crossing detection

  • Intrusion detection (with human/vehicle classification)

  • Face detection

• Linkage Actions:

  • Upload (FTP/NAS/SD)

  • Notify surveillance center

  • Trigger recording/capture

  • Send email

General

• Power:

  • 12 VDC ±25%, 0.5 A, Max. 6 W (Ø5.5 mm plug, reverse polarity protection)

  • PoE (802.3af, Class 3): 36–57 V, 0.2–0.13 A, Max. 7.2 W

• Dimensions: Ø70 mm × 161.7 mm (Ø2.8" × 6.4")

• Package Dimensions: 216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7")

• Weight: Approx. 485 g (1.1 lb)

• Weight with Packaging: Approx. 744 g (1.6 lb)

• Operating Temperature: -30°C to 60°C (-22°F to 140°F), ≤95% RH (non-condensing)

• Storage Conditions: Same as above

• Functions: Anti-flicker, heartbeat, email password reset, pixel counter

• Languages: 33 languages including English, French, Spanish, German, Russian, Chinese, Japanese, Korean, Portuguese, Turkish, etc.

Certifications

• EMC: FCC, CE-EMC, RCM, IC, KC

• Safety: UL, CB, CE-LVD, BIS

• Environmental: CE-RoHS, WEEE, REACH

• Protection: IP67 (IEC 60529:2013)

• High quality imaging with 6 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 120 dB WDR technology
• Focusing on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Datasheet

Camera Specifications

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS

• Max. Resolution: 3200 × 1800

• Min. Illumination:

  • Color: 0.005 Lux @ (F1.6, AGC ON)

  • B/W: 0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

• Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°

Lens

• Lens Type: Fixed focal, 2.8 mm

• Focal Length & FOV:

  • 2.8 mm

  • Horizontal FOV: 107°

  • Vertical FOV: 57°

  • Diagonal FOV: 128°

• Lens Mount: M12

• Iris Type: Fixed

• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification)

• 2.8 mm:

  • D: 73 m

  • O: 29 m

  • R: 15 m

  • I: 7 m

Illuminator

• Supplement Light Type: IR

• Range: Up to 40 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50 Hz: 20 fps (3200 × 1800)

  • 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:

  • 50 Hz: 25 fps (1280 × 720, 960 × 540, 640 × 480, 640 × 360)

• Third Stream:

  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Supported under certain settings

• Video Compression:

  • Main: H.265/H.264/H.264+/H.265+

  • Sub: H.265/H.264/MJPEG

  • Third: H.265/H.264

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline/Main/High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR/VBR

• Scalable Video Coding: H.264 and H.265

• ROI: 1 fixed region (main & sub stream)

Audio (Model -U Only)

• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC

• Bit Rate:

  • G.711ulaw/alaw: 64 Kbps

  • G.722.1 / G.726: 16 Kbps

  • AAC: 16–64 Kbps

  • MP2L2: 32–192 Kbps

  • MP3: 8–320 Kbps

• Sampling Rate: 8/16/32/44.1/48 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP(S), FTP, DHCP, DNS(DDNS), RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

• Simultaneous Live View: Up to 6 channels

• API Support: ONVIF (Profile S/G), ISAPI, SDK

• Users: Up to 32 (Administrator, Operator, User)

• Security:

  • Password protection

  • HTTPS encryption

  • IP filter

  • Security audit log

  • TLS 1.1/1.2

  • Digest & WSSE for ONVIF

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browsers:

  • Plug-in required: IE10/11

  • Plug-in free: Chrome 57+, Firefox 52+


• Parameter Switch: Yes

• Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance

• Day/Night Switch: Auto, Day, Night, Schedule

• WDR: 120 dB

• SNR: ≥ 52 dB

• Enhancements: BLC, HLC, 3D DNR

Interface

• Ethernet: 1× RJ45, 10/100 Mbps, self-adaptive

• On-Board Storage: microSD (up to 256 GB)

• Built-in Microphone: Yes (-U model)

• Reset Key: Yes

Events

• Basic Events:

  • Motion detection (human/vehicle classification)

  • Video tampering

  • Exception alerts

• Smart Events:

  • Line crossing detection

  • Intrusion detection (with human/vehicle classification)

  • Face detection

• Linkage Actions:

  • Upload (FTP/NAS/SD)

  • Notify surveillance center

  • Trigger recording/capture

  • Send email

General

• Power:

  • 12 VDC ±25%, 0.5 A, Max. 6 W (Ø5.5 mm plug, reverse polarity protection)

  • PoE (802.3af, Class 3): 36–57 V, 0.2–0.13 A, Max. 7.2 W

• Dimensions: Ø70 mm × 161.7 mm (Ø2.8" × 6.4")

• Package Dimensions: 216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7")

• Weight: Approx. 485 g (1.1 lb)

• Weight with Packaging: Approx. 744 g (1.6 lb)

• Operating Temperature: -30°C to 60°C (-22°F to 140°F), ≤95% RH (non-condensing)

• Storage Conditions: Same as above

• Functions: Anti-flicker, heartbeat, email password reset, pixel counter

• Languages: 33 languages including English, French, Spanish, German, Russian, Chinese, Japanese, Korean, Portuguese, Turkish, etc.

Certifications

• EMC: FCC, CE-EMC, RCM, IC, KC

• Safety: UL, CB, CE-LVD, BIS

• Environmental: CE-RoHS, WEEE, REACH

• Protection: IP67 (IEC 60529:2013)

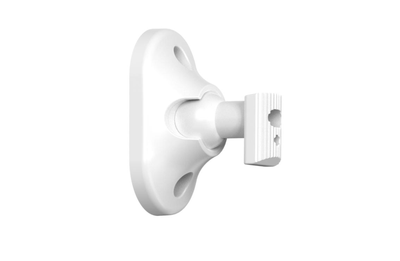

• 0-90° vertical; ±40° horizontal; Wall/Ceiling mount

General

Shell Material:
PC

Dimensions (W × H × D):
29.3 mm × 53.2 mm × 35.5 mm

Weight:
13 g

Application Scenario:
• 0–90° vertical adjustable
• ±40° horizontal adjustable

Installation Method:
Wall / ceiling mount

• 0-90° vertical; ±40° horizontal; Wall/Ceiling mount

General

Shell Material:
PC

Dimensions (W × H × D):
29.3 mm × 53.2 mm × 35.5 mm

Weight:
13 g

Application Scenario:
• 0–90° vertical adjustable
• ±40° horizontal adjustable

Installation Method:
Wall / ceiling mount
