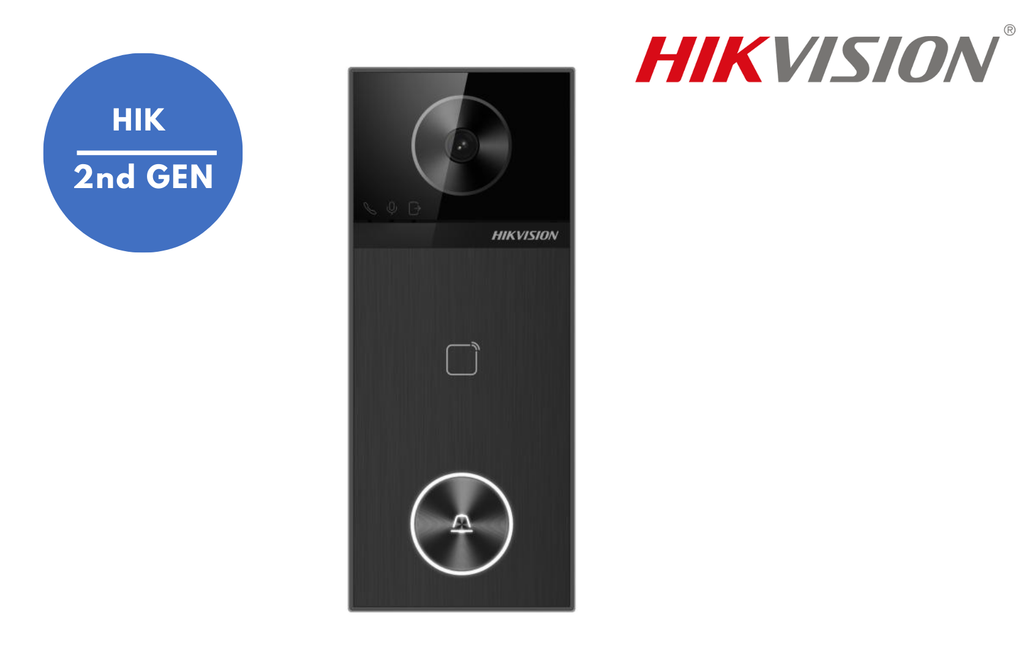

HIKVISION 2nd Gen IP Intercom, Villa Door Station
Regular price
$274.00
Villa Door Station
-
4 MP high-resolution camera with 150° wide viewing angle
-
Supports 2 lock controls
-
Multiple unlock methods: Card, Bluetooth, Hik-Connect App, Indoor Station
-
Video recording & playback via Hik-Connect or PC Web Interface
-
IEEE 802.3at PoE supported (standard PoE)
- Datasheet
System Parameters
-
Operating System: Linux
-
Processor: Embedded high-performance processor
-
ROM: 4 GB
-
RAM: 512 MB
Video Parameters
-
Lens: 1
-
Resolution:
-
Main Stream:
-
4 MP (2688 × 1520)
-
2 MP (1920 × 1080)
-
1 MP (1280 × 720)
-
-
Sub Stream:
-
2 MP (1920 × 1080)
-
1 MP (1280 × 720)
-
0.3 MP (640 × 480)
-
-
-
Field of View:
-
Horizontal: 150°
-
Vertical: 75°
-
-
WDR: 120 dB
-
Supplement Light: IR, up to 3 m
-
Video Compression: H.264 / H.265 / MJPEG
Audio Parameters
-
Audio Input: Built-in omnidirectional microphone
-
Audio Output: Built-in loudspeaker
-
Audio Compression:
G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729 -
Audio Bitrate: 8–64 Kbps
-
Audio Quality: Noise suppression & echo cancellation
-
Volume Adjustment: Adjustable
-
Audio Performance:
-
80 dB @ 50 cm
-
Max: 83 dB @ 50 cm
-
-
Sample Rate: 16 kHz / 8 kHz
Capacity
-
User Capacity: 2,000
-
Card Capacity: 10,000
-
Face Capacity: N/A
Network Parameters
-
Network Protocols: TCP/IP, RTSP, IPv6, ONVIF
-
Ethernet: 1 × RJ-45, 10/100 Mbps (self-adaptive)
-
Wi-Fi: 2.4 GHz
-
Wi-Fi Standard: IEEE 802.11 b/g/n/ax
-
Wi-Fi Type: Wi-Fi 6
-
Bluetooth: Supported
-
3G/4G: Not supported
Authentication
-
Authentication Methods: Card, Bluetooth, Hik-Connect, Indoor Station
-
Card Type: M1 Card
-
Frequency: 13.56 MHz
-
Reading Distance: 2–2.5 cm
Application & Features
-
Mobile App: Hik-Connect
-
Motion Detection: Supported
-
Playback: Supported
-
Call Elevator: Supported
-
Smart Features:
-
Sound Classification Detection
-
Scream
-
Glass breaking
-
Crying sound
-
-
Recommended detection distance: up to 3 m
-
Interfaces
-
Alarm Inputs: 4 (including exit button & door contact)
-
Alarm Output: N/A
-
Lock Control:
-
2 relay outputs
-
Max. 30 VDC, 2 A
-
-
Door Contact Input: 1
-
Exit Button: 1
-
Tamper Input: 1
-
RS-485: 1
-
USB: N/A
-
Wiegand: N/A
-
TF Card Slot:
-
Supports up to 128 GB
-
Formats: FAT32, exFAT
-
General
-
Button: 1 physical button
-
Installation: Surface mounting
-
Indicators: 3
-
Material:
-
Front & rear shell: Plastic
-
Viewing window panel: Glass
-
-
Protection Rating: IP65
-
Application Environment: Outdoor
Environmental
-
Operating Temperature:
-
−40 °C to 60 °C (−40 °F to 140 °F)
-
-
Operating Humidity:
-
10% to 90% (non-condensing)
-
Power
-
Power Supply:
-
12 VDC, 1.2 A
-
IEEE 802.3at PoE
-
-
Power Consumption: < 10 W
-
Power Output: Max. 12 VDC, 1 A
Physical
-
Dimensions (W × H × D):
164 × 69 × 24.7 mm -
Weight:
-
Without package: 273 g
-
With package: 431 g
-
Language Support
English, Arabic, French (EU), Russian, Spanish (EU & LATAM), Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan)
Warranty: 3 Year Hikvision ANZ Manufacturer Warranty
