• Highly durable and elegant: Made of aluminum panel with a mechanical keypad.

• 2MP HD Camera

• User Capacity: Supports up to 5,000 users and 10,000 cards.

• Unlock Methods: Allows multiple unlock methods including password, IC card, and remote unlock.

• Connectivity: Connects card readers and controllers through Wiegand protocol.

• Power Supply: Provides 12 VDC, 600 mA power.

• Weatherproofing: IP65 rated (silicone sealant is required for the shell; refer to the quick start guide).

• Vandal Resistance: IK08 rated.

• PoE Compatibility: Standard PoE power supply. If the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch compliant with the 802.3.at standard.

System

• Main Processor: Embedded Processor
• Operating System: Embedded Linux OS
• Button Type: Mechanical
• Number of Buttons: 12

Basic Features

• Camera: 1/2.9" 2 MP CMOS
• Field of View: Horizontal: 140°, Vertical: 80°, Diagonal: 160°
• WDR (Wide Dynamic Range): 120 dB
• Noise Reduction: 3D NR
• Video Compression: H.264, H.265
• Video Resolution:
  • Main stream: 720p, WVGA, D1, CIF
  • Sub stream: 1080p, WVGA, D1, QVGA, CIF
• Video Frame Rate: 25 fps
• Light Compensation: Auto white light
• Day/Night Mode: Color/B/W

Audio

• Audio Compression: G.711a, G.711u, PCM
• Audio Input: 1
• Audio Output: Built-in Speaker
• Audio Mode: Two-way audio
• Audio Enhancement: Echo suppression and digital noise reduction
• Audio Bit Rate: 16 kHz, 16 bit

Functions

• Communication Mode: Digital 2-wire
• Unlock Mode: Card swiping, password, remote
• Card Type: Mifare card
• Auto Snapshot: Yes (requires SD card in VTH or FTP server for VTO)
• Leave Videos: Yes (requires SD card in indoor monitor or door station)
• Storage: Supports Micro SD card (up to 256 GB)
• Web Configuration: Yes

RFID

• Modulation Type: AM
• Frequency Range: 13.56 MHz
• Max. Transmission Power: 42 dBuA/m @10 m

Performance

• Card Reading Distance: 0–3 cm (0"–1.18")
• Casing Material: Aluminum

Capacity

• Card Capacity: 10,000

Ports

• RS-485: 1
• Wiegand: 1
• Alarm Input: 1
• Alarm Output: 1
• Power Output: 1 port, 12 V/600 mA
• Door Bell: 1
• Exit Button: 1
• Lock Control: 1
• Network Port: 1 × RJ-45, 10 Mbps/100 Mbps

Alarm

• Tamper Alarm: Yes

General

• Appearance Color: Silver
• Power Supply: 48 VDC, 0.4 A, PoE (802.3af/at)
• Power Adapter: Optional
• Installation: Flush Mount; Surface Mount
• Certifications: CE
• Accessory: Flush mount box (optional), Surface mount box (optional)
• Product Dimensions: 200.0 mm × 98.0 mm × 35.4 mm (7.87" × 3.86" × 1.39")
• Protection: IK08, IP65 (silicone sealant required; see quick start guide)

Operating Conditions

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity: 10%–90% RH, non-condensing
• Operating Environment: Outdoor
• Operating Altitude: Up to 3,000 m (9,842.52 ft)

Power and Weight

• Power Consumption: ≤ 5 W (standby), ≤ 7 W (working)
• Gross Weight: 692 g (1.53 lb)

Storage Conditions

• Storage Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
• Storage Humidity: 30%–75% RH

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

• Highly durable and elegant: Made of aluminum panel with a mechanical keypad.

• 2MP HD Camera

• User Capacity: Supports up to 5,000 users and 10,000 cards.

• Unlock Methods: Allows multiple unlock methods including password, IC card, and remote unlock.

• Connectivity: Connects card readers and controllers through Wiegand protocol.

• Power Supply: Provides 12 VDC, 600 mA power.

• Weatherproofing: IP65 rated (silicone sealant is required for the shell; refer to the quick start guide).

• Vandal Resistance: IK08 rated.

• PoE Compatibility: Standard PoE power supply. If the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch compliant with the 802.3.at standard.

System

• Main Processor: Embedded Processor
• Operating System: Embedded Linux OS
• Button Type: Mechanical
• Number of Buttons: 12

Basic Features

• Camera: 1/2.9" 2 MP CMOS
• Field of View: Horizontal: 140°, Vertical: 80°, Diagonal: 160°
• WDR (Wide Dynamic Range): 120 dB
• Noise Reduction: 3D NR
• Video Compression: H.264, H.265
• Video Resolution:
  • Main stream: 720p, WVGA, D1, CIF
  • Sub stream: 1080p, WVGA, D1, QVGA, CIF
• Video Frame Rate: 25 fps
• Light Compensation: Auto white light
• Day/Night Mode: Color/B/W

Audio

• Audio Compression: G.711a, G.711u, PCM
• Audio Input: 1
• Audio Output: Built-in Speaker
• Audio Mode: Two-way audio
• Audio Enhancement: Echo suppression and digital noise reduction
• Audio Bit Rate: 16 kHz, 16 bit

Functions

• Communication Mode: Digital 2-wire
• Unlock Mode: Card swiping, password, remote
• Card Type: Mifare card
• Auto Snapshot: Yes (requires SD card in VTH or FTP server for VTO)
• Leave Videos: Yes (requires SD card in indoor monitor or door station)
• Storage: Supports Micro SD card (up to 256 GB)
• Web Configuration: Yes

RFID

• Modulation Type: AM
• Frequency Range: 13.56 MHz
• Max. Transmission Power: 42 dBuA/m @10 m

Performance

• Card Reading Distance: 0–3 cm (0"–1.18")
• Casing Material: Aluminum

Capacity

• Card Capacity: 10,000

Ports

• RS-485: 1
• Wiegand: 1
• Alarm Input: 1
• Alarm Output: 1
• Power Output: 1 port, 12 V/600 mA
• Door Bell: 1
• Exit Button: 1
• Lock Control: 1
• Network Port: 1 × RJ-45, 10 Mbps/100 Mbps

Alarm

• Tamper Alarm: Yes

General

• Appearance Color: Silver
• Power Supply: 48 VDC, 0.4 A, PoE (802.3af/at)
• Power Adapter: Optional
• Installation: Flush Mount; Surface Mount
• Certifications: CE
• Accessory: Flush mount box (optional), Surface mount box (optional)
• Product Dimensions: 200.0 mm × 98.0 mm × 35.4 mm (7.87" × 3.86" × 1.39")
• Protection: IK08, IP65 (silicone sealant required; see quick start guide)

Operating Conditions

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity: 10%–90% RH, non-condensing
• Operating Environment: Outdoor
• Operating Altitude: Up to 3,000 m (9,842.52 ft)

Power and Weight

• Power Consumption: ≤ 5 W (standby), ≤ 7 W (working)
• Gross Weight: 692 g (1.53 lb)

Storage Conditions

• Storage Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
• Storage Humidity: 30%–75% RH

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

2-Wire IP Villa Door Station

• Anodized aluminum front panel.
• CMOS low illumination 2MP HD colorful 168.6° camera.
• Video intercom function.
• Provides 12 VDC, 600 mA power.
• Mobile phone app for talking to visitors or unlocking the door remotely.
• IK07 & IP65 rated (requires silicone sealant for the shell; refer to the quick start guide).
• Supports surface and flush mounting.
• Supports H.265 and H.264 video compression.
• Standard PoE power supply (if the VTO device with 12 V power output charges a load, it must be connected to a PSE switch compliant with the 802.3.at standard).
• Datasheet

System

• Main Processor: Embedded Processor
• Operating System: Embedded Linux Operating System
• Button Type: Mechanical
• Number of Buttons: 1
• Interoperability: ONVIF, CGI

Network Protocols

IPv4, RTSP, UDP, DNS, P2P, UPnP, RTP, TCP, SIP

Basic Features

• Camera: 1/2.9" 2 MP CMOS
• Field of View: Horizontal: 168.6°, Vertical: 87.1°, Diagonal: 176.7°
• WDR: 120 dB
• Noise Reduction: 3D NR
• Video Compression: H.265, H.264
• Video Resolution:
  • Main Stream: 720p, WVGA, D1, CIF
  • Sub Stream: 1080p, WVGA, D1, QVGA, CIF
• Video Frame Rate: 25 fps
• Video Bit Rate: 256 Kbps to 8 Mbps
• Light Compensation: Auto IR
• Day/Night Mode: Auto(ICR)/Color/B/W, Color/B/W
• Audio Compression: G.711a, G.711u, PCM
• Audio Input: 1 channel
• Audio Output: Built-in speaker
• Audio Mode: Two-way audio
• Audio Enhancement: Echo suppression, digital noise reduction
• Audio Bit Rate: 16 kHz, 16 bits

Functionality

• Communication Mode: Digital 2-wire
• Unlock Mode: Remote
• Leave Videos: Yes (requires SD card in the indoor monitor or door station)
• Storage: Supports Micro SD card (up to 256 GB)
• Web Configuration: Yes

Performance

• Casing Material: Aluminum
• Ports:
  • RS-485: 1
  • Alarm Output: 1
  • Power Output: 1 port, 12 V/600 mA
  • Exit Button: 1
  • Door Status Detection: 1
  • Lock Control: 1
  • Network Port: 1 × RJ-45, 10/100 Mbps

Alarm

• Tamper Alarm: Yes

General Information

• Appearance Color: Black
• Power Supply:
  • Dahua 2-wire switch (max. power supply distance: 50 m)
  • 48 VDC, 1 A; PoE (802.3af/at)
• Power Adapter: Optional
• Installation: Surface Mount
• Certifications: CE
• Accessories:
  • Surface mount box (optional)
  • Flush mount box (optional)
  • Rain cover (optional)
• Product Dimensions: 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
• Protection: IK07, IP65
• Operating Temperature: –30°C to +60°C (–22°F to +140°F)
• Operating Humidity: 10%–90% RH, non-condensing
• Operating Environment: Outdoor
• Operating Altitude: 0 m–3000 m (0 ft–9842.52 ft)
• Power Consumption: ≤4 W (standby), ≤5 W (working)
• Gross Weight: 0.48 kg (1.06 lb)
• Storage Temperature: 0°C to +40°C (+32°F to +104°F)
• Storage Humidity: 30%–75% RH, non-condensing

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

2-Wire IP Villa Door Station

• Anodized aluminum front panel.
• CMOS low illumination 2MP HD colorful 168.6° camera.
• Video intercom function.
• Provides 12 VDC, 600 mA power.
• Mobile phone app for talking to visitors or unlocking the door remotely.
• IK07 & IP65 rated (requires silicone sealant for the shell; refer to the quick start guide).
• Supports surface and flush mounting.
• Supports H.265 and H.264 video compression.
• Standard PoE power supply (if the VTO device with 12 V power output charges a load, it must be connected to a PSE switch compliant with the 802.3.at standard).
• Datasheet

System

• Main Processor: Embedded Processor
• Operating System: Embedded Linux Operating System
• Button Type: Mechanical
• Number of Buttons: 1
• Interoperability: ONVIF, CGI

Network Protocols

IPv4, RTSP, UDP, DNS, P2P, UPnP, RTP, TCP, SIP

Basic Features

• Camera: 1/2.9" 2 MP CMOS
• Field of View: Horizontal: 168.6°, Vertical: 87.1°, Diagonal: 176.7°
• WDR: 120 dB
• Noise Reduction: 3D NR
• Video Compression: H.265, H.264
• Video Resolution:
  • Main Stream: 720p, WVGA, D1, CIF
  • Sub Stream: 1080p, WVGA, D1, QVGA, CIF
• Video Frame Rate: 25 fps
• Video Bit Rate: 256 Kbps to 8 Mbps
• Light Compensation: Auto IR
• Day/Night Mode: Auto(ICR)/Color/B/W, Color/B/W
• Audio Compression: G.711a, G.711u, PCM
• Audio Input: 1 channel
• Audio Output: Built-in speaker
• Audio Mode: Two-way audio
• Audio Enhancement: Echo suppression, digital noise reduction
• Audio Bit Rate: 16 kHz, 16 bits

Functionality

• Communication Mode: Digital 2-wire
• Unlock Mode: Remote
• Leave Videos: Yes (requires SD card in the indoor monitor or door station)
• Storage: Supports Micro SD card (up to 256 GB)
• Web Configuration: Yes

Performance

• Casing Material: Aluminum
• Ports:
  • RS-485: 1
  • Alarm Output: 1
  • Power Output: 1 port, 12 V/600 mA
  • Exit Button: 1
  • Door Status Detection: 1
  • Lock Control: 1
  • Network Port: 1 × RJ-45, 10/100 Mbps

Alarm

• Tamper Alarm: Yes

General Information

• Appearance Color: Black
• Power Supply:
  • Dahua 2-wire switch (max. power supply distance: 50 m)
  • 48 VDC, 1 A; PoE (802.3af/at)
• Power Adapter: Optional
• Installation: Surface Mount
• Certifications: CE
• Accessories:
  • Surface mount box (optional)
  • Flush mount box (optional)
  • Rain cover (optional)
• Product Dimensions: 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
• Protection: IK07, IP65
• Operating Temperature: –30°C to +60°C (–22°F to +140°F)
• Operating Humidity: 10%–90% RH, non-condensing
• Operating Environment: Outdoor
• Operating Altitude: 0 m–3000 m (0 ft–9842.52 ft)
• Power Consumption: ≤4 W (standby), ≤5 W (working)
• Gross Weight: 0.48 kg (1.06 lb)
• Storage Temperature: 0°C to +40°C (+32°F to +104°F)
• Storage Humidity: 30%–75% RH, non-condensing

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Features

• > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
• > 32-channel 1080p self-adaptive decoding capability
• > Support Raid0/1/5/6/10
• > Max. 384 Mbps incoming/recording/outgoing bandwidth
• > AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus
• > AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting
• > Security baseline 2.3

Specifications

Downloads

• NVR5864-AIANZ

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Features

• > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
• > 32-channel 1080p self-adaptive decoding capability
• > Support Raid0/1/5/6/10
• > Max. 384 Mbps incoming/recording/outgoing bandwidth
• > AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus
• > AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting
• > Security baseline 2.3

Specifications

Downloads

• NVR5864-AIANZ

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Features

• > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
• > 32-channel 1080p self-adaptive decoding capability
• > Max. 384 Mbps incoming/recording/outgoing bandwidth
• > AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus
• > AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting
• > Security baseline 2.3

Specifications

Downloads

• NVR5432-AIANZ

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Features

• > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
• > 32-channel 1080p self-adaptive decoding capability
• > Max. 384 Mbps incoming/recording/outgoing bandwidth
• > AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus
• > AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting
• > Security baseline 2.3

Specifications

Downloads

• NVR5432-AIANZ

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Features

• > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
• > 32-channel 1080p self-adaptive decoding capability
• > Max. 384 Mbps incoming/recording/outgoing bandwidth
• > AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus
• > AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting
• > Security baseline 2.3

Specifications

Downloads

• NVR5432-16P-AIANZ

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Features

• > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
• > 32-channel 1080p self-adaptive decoding capability
• > Max. 384 Mbps incoming/recording/outgoing bandwidth
• > AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus
• > AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting
• > Security baseline 2.3

Specifications

Downloads

• NVR5432-16P-AIANZ

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Features

• > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
• > 32-channel 1080p self-adaptive decoding capability.
• > Max. 384 Mbps incoming/recording/outgoing bandwidth.
• > AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus.
• > AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, and people counting.
• > Security baseline 2.3.

Specifications

Downloads

• NVR5216-16P-AI/ANZ_datasheetPDF
• Dahua_Network_Video_Recorder_User_s_Manual_V2.3.3

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Features

• > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
• > 32-channel 1080p self-adaptive decoding capability.
• > Max. 384 Mbps incoming/recording/outgoing bandwidth.
• > AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus.
• > AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, and people counting.
• > Security baseline 2.3.

Specifications

Downloads

• NVR5216-16P-AI/ANZ_datasheetPDF
• Dahua_Network_Video_Recorder_User_s_Manual_V2.3.3

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Dahua 16ch NVR Record Up to 16MP, 16 Port PoE,HDMI(4K),Smart 2.0, P2P (without HDD), Support 2 HDD

Features

• > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
• > Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
• > Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
• > AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
• > AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map.
• > Connected to the third-party network cameras.
• > Security baseline 2.3.

Specifications

Downloads

• DHI-NVR4216-16P-AIANZ_datasheet_20221209PDF
• Dahua Network Video Recorder_User's_Manual_V2.3.0-EngPDF
• Network Video Recorder_Quick Start Guide_V1.0.0-EngPDF
• HDD INSTALLATION GUIDE_V1.0.0

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Dahua 16ch NVR Record Up to 16MP, 16 Port PoE,HDMI(4K),Smart 2.0, P2P (without HDD), Support 2 HDD

Features

• > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
• > Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
• > Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
• > AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
• > AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map.
• > Connected to the third-party network cameras.
• > Security baseline 2.3.

Specifications

Downloads

• DHI-NVR4216-16P-AIANZ_datasheet_20221209PDF
• Dahua Network Video Recorder_User's_Manual_V2.3.0-EngPDF
• Network Video Recorder_Quick Start Guide_V1.0.0-EngPDF
• HDD INSTALLATION GUIDE_V1.0.0

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

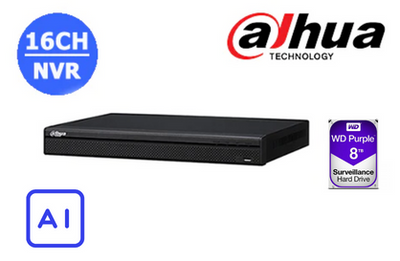

Dahua 16ch NVR Record Up to 16MP, 16 Port PoE,HDMI(4K),Smart 2.0, P2P, Support 2 HDD, 8TB HDD installed

Features

• > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
• > Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
• > Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
• > AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
• > AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map.
• > Connected to the third-party network cameras.
• > Security baseline 2.3.

Specifications

Downloads

• DHI-NVR4216-16P-AIANZ_datasheet_20221209PDF
• Dahua Network Video Recorder_User's_Manual_V2.3.0-EngPDF
• Network Video Recorder_Quick Start Guide_V1.0.0-EngPDF
• HDD INSTALLATION GUIDE_V1.0.0

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Dahua 16ch NVR Record Up to 16MP, 16 Port PoE,HDMI(4K),Smart 2.0, P2P, Support 2 HDD, 8TB HDD installed

Features

• > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
• > Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
• > Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
• > AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
• > AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map.
• > Connected to the third-party network cameras.
• > Security baseline 2.3.

Specifications

Downloads

• DHI-NVR4216-16P-AIANZ_datasheet_20221209PDF
• Dahua Network Video Recorder_User's_Manual_V2.3.0-EngPDF
• Network Video Recorder_Quick Start Guide_V1.0.0-EngPDF
• HDD INSTALLATION GUIDE_V1.0.0

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Dahua 16ch NVR Record Up to 16MP, 16 Port PoE,HDMI(4K),Smart 2.0, P2P, Support 2 HDD, 6TB HDD installed

Features

• > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
• > Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
• > Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
• > AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
• > AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map.
• > Connected to the third-party network cameras.
• > Security baseline 2.3.

Specifications

Downloads

• DHI-NVR4216-16P-AIANZ_datasheet_20221209PDF
• Dahua Network Video Recorder_User's_Manual_V2.3.0-EngPDF
• Network Video Recorder_Quick Start Guide_V1.0.0-EngPDF
• HDD INSTALLATION GUIDE_V1.0.0

Warranty: 3 Year Dahua ANZ Manufacturer Warranty
