Dahua CCTV cameras, NVRs and complete surveillance kits. WizSense, TIOC active deterrence, full colour and Pro AI series. Australian ANZ-certified models.
6-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 6 MP (3200 × 1800) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> One-click arming/disarming through alarm input.
Camera
Image Sensor:
- 1/2.7" CMOS
Max. Resolution:
- 3200 (H) × 1800 (V)
ROM:
- 128 MB
RAM:
- 512 MB
Scanning System:
- Progressive
Electronic Shutter Speed:
- Auto/Manual 1/3 s–1/100,000 s
Min. Illumination:
- 0.003 lux@F1.0 (Color, 30 IRE)
- 0.0003 lux@F1.0 (B/W, 30 IRE)
- 0 lux (illuminator on)
S/N Ratio:
-
56 dB
Illumination Distance:
- 30 m (98.43 ft) (IR)
- 30 m (98.43 ft) (warm light)
Illuminator On/Off Control:
- Auto/Manual
Illuminator Number:
- 2 (IR LED)
- 2 (warm light)
Pan/Tilt/Rotation Range:
- Pan: 0°–360°
- Tilt: 0°–90°
- Rotation: 0°–360°
Lens
Lens Type:
- Fixed-focal
Mount Type:
- M12
Focal Length:
- 2.8 mm; 3.6 mm
Field of View:
- 2.8 mm: H: 101°; V: 53°; D: 120°
- 3.6 mm: H: 82°; V: 44°; D: 96°
Iris Type:
- Fixed
Close Focus Distance:
- 2.8 mm: 1.5 m (4.92 ft)
- 3.6 mm: 2.2 m (7.22 ft)
DORI Distance:
| Lens | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
| 2.8 mm | 66.0 m (216.54 ft) | 26.4 m (86.61 ft) | 13.2 m (43.31 ft) | 6.6 m (21.65 ft) |
| 3.6 mm | 78.0 m (255.91 ft) | 31.2 m (102.36 ft) | 15.6 m (51.18 ft) | 7.8 m (25.59 ft) |
Intelligence
IVS (Perimeter Protection):
- Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
SMD 4.0:
- Less false alarm, longer detection distance
Smart Search:
- Work together with Smart NVR to perform refined intelligent search, event extraction, and merging to event videos
Quick Pick:
- With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
AI SSA:
- Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Video
Video Compression:
- H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec:
- Smart H.265+; Smart H.264+
AI Coding:
- AI H.265; AI H.264
Video Frame Rate:
- Main stream: 3200 × 1800@(1 fps–25/30 fps)
- Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
- Third stream:1920 × 1080@(1 fps–30 fps)
- The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability:
- 3 streams
Resolution:
- 6M (3200 × 1800); 5M (2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296/2048 × 1536); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control:
- CBR/VBR
Video Bit Rate:
- H.264: 32 kbps–8192 kbps
- H.265: 12 kbps–8192 kbps
Day/Night:
- Auto (ICR)/Color/B/W
BLC:
- Yes
HLC:
- Yes
WDR:
- 120 dB
Scene Self-adaptation:
- Yes
White Balance:
- Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control:
- Auto; manual
Noise Reduction:
- 3D NR
Motion Detection:
- OFF/ON (4 areas)
Region of Interest (RoI):
- Yes (4 areas)
Smart Illumination:
- Yes
Defog:
- Yes
Image Rotation:
- 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror:
- Yes
Privacy Masking:
- 8 areas
Audio
Built-in MIC:
- Yes
Audio Compression:
- PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event:
- No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Network:
- RJ-45 (10/100 Base-T)
SDK and API:
- Yes
Cyber Security:
- Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol:
- IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability:
- ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P; RTMP
User/Host:
- 20 (Total bandwidth: 72 M)
Storage:
- FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser:
- IE: IE8/9/11
- Chrome
- Firefox
Management Software:
- Smart PSS; DSS; DMSS
Mobile Phone:
- iOS; Android
Certification
Certification:
- CE-LVD: EN 62368-1
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
- FCC: 47 CFR FCC Part 15, Subpart B
- UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input:
- 1 channel (RCA port)
Audio Output:
- 1 channel (RCA port)
Alarm Input:
- 1 channel in: 5mA 3V–5 VDC
Alarm Output:
- 1 channel out: 300mA 12 VDC
Power
Power Supply:
- 12 VDC/PoE (802.3af)
Power Consumption:
- Basic: 3.3 W (12 VDC); 4.4 W (PoE)
- Max. (pulling stream + warning light + speaker + warm light on): 6.8 W (12 VDC); 8.2 W (PoE)
Environment
Operating Conditions:
- –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions:
- –40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade:
- IP67
Structure
Casing:
- Metal + plastic
Dimensions:
- 288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72" × 3.33") (L × W × H)
Net Weight:
- 1.0 kg (2.20 lb)
Gross Weight:
- 1.23 kg (2.71 lb)
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
6-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 6 MP (3200 × 1800) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> One-click arming/disarming through alarm input.
Camera
Image Sensor:
- 1/2.7" CMOS
Max. Resolution:
- 3200 (H) × 1800 (V)
ROM:
- 128 MB
RAM:
- 512 MB
Scanning System:
- Progressive
Electronic Shutter Speed:
- Auto/Manual 1/3 s–1/100,000 s
Min. Illumination:
- 0.003 lux@F1.0 (Color, 30 IRE)
- 0.0003 lux@F1.0 (B/W, 30 IRE)
- 0 lux (illuminator on)
S/N Ratio:
-
56 dB
Illumination Distance:
- 30 m (98.43 ft) (IR)
- 30 m (98.43 ft) (warm light)
Illuminator On/Off Control:
- Auto/Manual
Illuminator Number:
- 2 (IR LED)
- 2 (warm light)
Pan/Tilt/Rotation Range:
- Pan: 0°–360°
- Tilt: 0°–90°
- Rotation: 0°–360°
Lens
Lens Type:
- Fixed-focal
Mount Type:
- M12
Focal Length:
- 2.8 mm; 3.6 mm
Field of View:
- 2.8 mm: H: 101°; V: 53°; D: 120°
- 3.6 mm: H: 82°; V: 44°; D: 96°
Iris Type:
- Fixed
Close Focus Distance:
- 2.8 mm: 1.5 m (4.92 ft)
- 3.6 mm: 2.2 m (7.22 ft)
DORI Distance:
| Lens | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
| 2.8 mm | 66.0 m (216.54 ft) | 26.4 m (86.61 ft) | 13.2 m (43.31 ft) | 6.6 m (21.65 ft) |
| 3.6 mm | 78.0 m (255.91 ft) | 31.2 m (102.36 ft) | 15.6 m (51.18 ft) | 7.8 m (25.59 ft) |
Intelligence
IVS (Perimeter Protection):
- Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
SMD 4.0:
- Less false alarm, longer detection distance
Smart Search:
- Work together with Smart NVR to perform refined intelligent search, event extraction, and merging to event videos
Quick Pick:
- With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
AI SSA:
- Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Video
Video Compression:
- H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec:
- Smart H.265+; Smart H.264+
AI Coding:
- AI H.265; AI H.264
Video Frame Rate:
- Main stream: 3200 × 1800@(1 fps–25/30 fps)
- Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
- Third stream:1920 × 1080@(1 fps–30 fps)
- The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability:
- 3 streams
Resolution:
- 6M (3200 × 1800); 5M (2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296/2048 × 1536); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control:
- CBR/VBR
Video Bit Rate:
- H.264: 32 kbps–8192 kbps
- H.265: 12 kbps–8192 kbps
Day/Night:
- Auto (ICR)/Color/B/W
BLC:
- Yes
HLC:
- Yes
WDR:
- 120 dB
Scene Self-adaptation:
- Yes
White Balance:
- Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control:
- Auto; manual
Noise Reduction:
- 3D NR
Motion Detection:
- OFF/ON (4 areas)
Region of Interest (RoI):
- Yes (4 areas)
Smart Illumination:
- Yes
Defog:
- Yes
Image Rotation:
- 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror:
- Yes
Privacy Masking:
- 8 areas
Audio
Built-in MIC:
- Yes
Audio Compression:
- PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event:
- No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Network:
- RJ-45 (10/100 Base-T)
SDK and API:
- Yes
Cyber Security:
- Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol:
- IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability:
- ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P; RTMP
User/Host:
- 20 (Total bandwidth: 72 M)
Storage:
- FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser:
- IE: IE8/9/11
- Chrome
- Firefox
Management Software:
- Smart PSS; DSS; DMSS
Mobile Phone:
- iOS; Android
Certification
Certification:
- CE-LVD: EN 62368-1
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
- FCC: 47 CFR FCC Part 15, Subpart B
- UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input:
- 1 channel (RCA port)
Audio Output:
- 1 channel (RCA port)
Alarm Input:
- 1 channel in: 5mA 3V–5 VDC
Alarm Output:
- 1 channel out: 300mA 12 VDC
Power
Power Supply:
- 12 VDC/PoE (802.3af)
Power Consumption:
- Basic: 3.3 W (12 VDC); 4.4 W (PoE)
- Max. (pulling stream + warning light + speaker + warm light on): 6.8 W (12 VDC); 8.2 W (PoE)
Environment
Operating Conditions:
- –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions:
- –40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade:
- IP67
Structure
Casing:
- Metal + plastic
Dimensions:
- 288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72" × 3.33") (L × W × H)
Net Weight:
- 1.0 kg (2.20 lb)
Gross Weight:
- 1.23 kg (2.71 lb)
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
- Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps
- H.265 codec, high compression rate, low bit rate
- Built-in warm illuminator, and the max. illumination distance: 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing.
- Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and spearker
- 12V DC/PoE power supply
- IP67 protection
- SMD Plus
- Red and blue flashlight alarm
- DH-IPC-HFW3549T1P-AS-PV-0280B-S3 Specification :
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
- Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps
- H.265 codec, high compression rate, low bit rate
- Built-in warm illuminator, and the max. illumination distance: 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing.
- Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and spearker
- 12V DC/PoE power supply
- IP67 protection
- SMD Plus
- Red and blue flashlight alarm
- DH-IPC-HFW3549T1P-AS-PV-0280B-S3 Specification :
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- 8MP 1/2.7'' CMOS image sensor, low luminance, and high-definition image
- Outputs max. 8 MP (3840 x 2160) @ 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED and warm light, max. IR illumination distance: 30 m; max. warm light distance: 30 m
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding for various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking for diverse monitoring scenarios
- Intelligent monitoring: Intrusion, tripwire (with classification and accurate detection of vehicles and humans)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in mic
- 12 VDC/PoE power supply
- IP67 and IK10 protection
- SMD 4.0
- Supports AI SSA
- SMD area can be set in warm light areas that support triggering alarms
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 8MP |
| CAMERA STYLE | Turret |
| COLOUR | Black |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZSENSE SERIES |
| POE | POE |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- 8MP 1/2.7'' CMOS image sensor, low luminance, and high-definition image
- Outputs max. 8 MP (3840 x 2160) @ 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED and warm light, max. IR illumination distance: 30 m; max. warm light distance: 30 m
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding for various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking for diverse monitoring scenarios
- Intelligent monitoring: Intrusion, tripwire (with classification and accurate detection of vehicles and humans)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in mic
- 12 VDC/PoE power supply
- IP67 and IK10 protection
- SMD 4.0
- Supports AI SSA
- SMD area can be set in warm light areas that support triggering alarms
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 8MP |
| CAMERA STYLE | Turret |
| COLOUR | Black |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZSENSE SERIES |
| POE | POE |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- 8MP 1/2.7'' CMOS image sensor, low luminance, and high-definition image
- Outputs max. 8 MP (3840 x 2160) @ 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED and warm light, max. IR illumination distance: 30 m; max. warm light distance: 30 m
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding for various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking for diverse monitoring scenarios
- Intelligent monitoring: Intrusion, tripwire (with classification and accurate detection of vehicles and humans)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in mic
- 12 VDC/PoE power supply
- IP67 and IK10 protection
- SMD 4.0
- Supports AI SSA
- SMD area can be set in warm light areas that support triggering alarms
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 8MP |
| CAMERA STYLE | Turret |
| COLOUR | Black |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZSENSE SERIES |
| POE | POE |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- 8MP 1/2.7'' CMOS image sensor, low luminance, and high-definition image
- Outputs max. 8 MP (3840 x 2160) @ 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED and warm light, max. IR illumination distance: 30 m; max. warm light distance: 30 m
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding for various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking for diverse monitoring scenarios
- Intelligent monitoring: Intrusion, tripwire (with classification and accurate detection of vehicles and humans)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in mic
- 12 VDC/PoE power supply
- IP67 and IK10 protection
- SMD 4.0
- Supports AI SSA
- SMD area can be set in warm light areas that support triggering alarms
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 8MP |
| CAMERA STYLE | Turret |
| COLOUR | Black |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZSENSE SERIES |
| POE | POE |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- 8MP 1/2.7'' CMOS image sensor, low luminance, and high-definition image
- Outputs max. 8 MP (3840 x 2160) @ 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED and warm light, max. IR illumination distance: 30 m; max. warm light distance: 30 m
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding for various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking for diverse monitoring scenarios
- Intelligent monitoring: Intrusion, tripwire (with classification and accurate detection of vehicles and humans)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in mic
- 12 VDC/PoE power supply
- IP67 and IK10 protection
- SMD 4.0
- Supports AI SSA
- SMD area can be set in warm light areas that support triggering alarms
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 8MP |
| CAMERA STYLE | Turret |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZSENSE SERIES |
| POE | POE |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- 8MP 1/2.7'' CMOS image sensor, low luminance, and high-definition image
- Outputs max. 8 MP (3840 x 2160) @ 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED and warm light, max. IR illumination distance: 30 m; max. warm light distance: 30 m
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding for various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking for diverse monitoring scenarios
- Intelligent monitoring: Intrusion, tripwire (with classification and accurate detection of vehicles and humans)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in mic
- 12 VDC/PoE power supply
- IP67 and IK10 protection
- SMD 4.0
- Supports AI SSA
- SMD area can be set in warm light areas that support triggering alarms
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 8MP |
| CAMERA STYLE | Turret |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZSENSE SERIES |
| POE | POE |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- 8MP 1/2.7'' CMOS image sensor, low luminance, and high-definition image
- Outputs max. 8 MP (3840 x 2160) @ 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED and warm light, max. IR illumination distance: 30 m; max. warm light distance: 30 m
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding for various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking for diverse monitoring scenarios
- Intelligent monitoring: Intrusion, tripwire (with classification and accurate detection of vehicles and humans)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in mic
- 12 VDC/PoE power supply
- IP67 and IK10 protection
- SMD 4.0
- Supports AI SSA
- SMD area can be set in warm light areas that support triggering alarms
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 8MP |
| CAMERA STYLE | Turret |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZSENSE SERIES |
| POE | POE |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
- 8MP 1/2.7'' CMOS image sensor, low luminance, and high-definition image
- Outputs max. 8 MP (3840 x 2160) @ 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED and warm light, max. IR illumination distance: 30 m; max. warm light distance: 30 m
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding for various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking for diverse monitoring scenarios
- Intelligent monitoring: Intrusion, tripwire (with classification and accurate detection of vehicles and humans)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in mic
- 12 VDC/PoE power supply
- IP67 and IK10 protection
- SMD 4.0
- Supports AI SSA
- SMD area can be set in warm light areas that support triggering alarms
| NETWORK CAMERA | |
|---|---|
| MEGAPIXELS | 8MP |
| CAMERA STYLE | Turret |
| COLOUR | White |
| LENS TYPE | Fixed |
| TECHNOLOGY | WIZSENSE SERIES |
| POE | POE |
Warranty: 3 Year Dahua ANZ Manufacturer Warranty

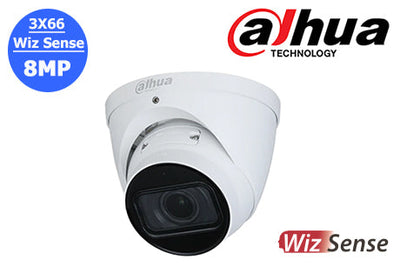

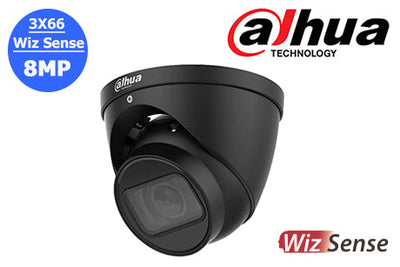

DH-IPC-HDW3866TP-ZS-AUS-BLK Dahua 8MP (4K) Turret Motorised Camera
> 8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 8 MP (3840 x 2160) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 40 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply facilitates installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
DH-IPC-HDW3866TP-ZS-AUS-BLK Dahua 8MP (4K) Turret Motorised Camera
> 8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 8 MP (3840 x 2160) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 40 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply facilitates installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
DH-IPC-HDW3866TP-ZS-AUS-BLK Dahua 8MP (4K) Turret Motorised Camera
> 8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 8 MP (3840 x 2160) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 40 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply facilitates installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
DH-IPC-HDW3866TP-ZS-AUS-BLK Dahua 8MP (4K) Turret Motorised Camera
> 8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 8 MP (3840 x 2160) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 40 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply facilitates installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
> Outputs max. 6 MP (3072 x 2048) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 50 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
> Outputs max. 6 MP (3072 x 2048) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 50 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
> Outputs max. 6 MP (3072 x 2048) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 50 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
> Outputs max. 6 MP (3072 x 2048) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 50 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty

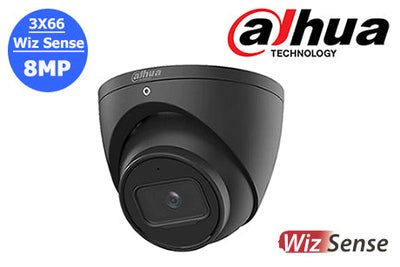

DH-IPC-HDW3866EMP-S-AUS-BLK Dahua 8MP (4K) Turret Fixed Camera
> 8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 8MP (3840 x 2160) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 30 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply facilitates installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
DH-IPC-HDW3866EMP-S-AUS-BLK Dahua 8MP (4K) Turret Fixed Camera
> 8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 8MP (3840 x 2160) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 30 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply facilitates installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
DH-IPC-HDW3866EMP-S-AUS-BLK Dahua 8MP (4K) Turret Fixed Camera
> 8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 8MP (3840 x 2160) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 30 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply facilitates installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
DH-IPC-HDW3866EMP-S-AUS-BLK Dahua 8MP (4K) Turret Fixed Camera
> 8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 8MP (3840 x 2160) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 30 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply facilitates installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
8MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera
-
Image Sensor and Quality
- 8-MP 1/2.8" CMOS image sensor for low luminance and high-definition images.
- Outputs a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps.
-
Video Compression and Codec
- H.265 codec for high compression with ultra-low bit rate.
- Supports ROI, SMART H.264+/H.265+, and AI-enhanced H.264/H.265 for optimized storage and bandwidth.
-
Illumination
- Built-in warm light and IR LED with up to 50 m IR range and 40 m warm light range.
-
Advanced Features
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for flexible monitoring across different scenarios.
- Intelligent monitoring with intrusion and tripwire detection, including human/vehicle classification.
-
Abnormality Detection
- Detects motion, privacy masking, scene changes, and audio anomalies.
- Monitors SD card issues (missing, full, or error) and network issues (disconnection, IP conflict, illegal access).
- Includes voltage detection for power-related abnormalities.
-
Alarm and Audio Capabilities
- 1 alarm input and output; 1 audio input and output.
- Built-in dual microphone and 1-channel speaker for two-way audio communication.
-
Storage and Power
- Supports up to 512 GB Micro SD card.
- 12 VDC or PoE power supply for installation flexibility.
-
Protection and Alarms
- IP67-rated for weather resistance.
- Equipped with sound and light alarms featuring red and blue lights.
-
AI Features and Controls
- Supports SMD 4.0 for precise motion detection.
- AI SSA and one-tap arming/disarming functionality.
- Configurable SMD areas within warm light zones to trigger alarms.
- Datasheet
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
8MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera
-
Image Sensor and Quality
- 8-MP 1/2.8" CMOS image sensor for low luminance and high-definition images.
- Outputs a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps.
-
Video Compression and Codec
- H.265 codec for high compression with ultra-low bit rate.
- Supports ROI, SMART H.264+/H.265+, and AI-enhanced H.264/H.265 for optimized storage and bandwidth.
-
Illumination
- Built-in warm light and IR LED with up to 50 m IR range and 40 m warm light range.
-
Advanced Features
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for flexible monitoring across different scenarios.
- Intelligent monitoring with intrusion and tripwire detection, including human/vehicle classification.
-
Abnormality Detection
- Detects motion, privacy masking, scene changes, and audio anomalies.
- Monitors SD card issues (missing, full, or error) and network issues (disconnection, IP conflict, illegal access).
- Includes voltage detection for power-related abnormalities.
-
Alarm and Audio Capabilities
- 1 alarm input and output; 1 audio input and output.
- Built-in dual microphone and 1-channel speaker for two-way audio communication.
-
Storage and Power
- Supports up to 512 GB Micro SD card.
- 12 VDC or PoE power supply for installation flexibility.
-
Protection and Alarms
- IP67-rated for weather resistance.
- Equipped with sound and light alarms featuring red and blue lights.
-
AI Features and Controls
- Supports SMD 4.0 for precise motion detection.
- AI SSA and one-tap arming/disarming functionality.
- Configurable SMD areas within warm light zones to trigger alarms.
- Datasheet
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
8MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera
-
Image Sensor and Quality
- 8-MP 1/2.8" CMOS image sensor for low luminance and high-definition images.
- Outputs a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps.
-
Video Compression and Codec
- H.265 codec for high compression with ultra-low bit rate.
- Supports ROI, SMART H.264+/H.265+, and AI-enhanced H.264/H.265 for optimized storage and bandwidth.
-
Illumination
- Built-in warm light and IR LED with up to 50 m IR range and 40 m warm light range.
-
Advanced Features
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for flexible monitoring across different scenarios.
- Intelligent monitoring with intrusion and tripwire detection, including human/vehicle classification.
-
Abnormality Detection
- Detects motion, privacy masking, scene changes, and audio anomalies.
- Monitors SD card issues (missing, full, or error) and network issues (disconnection, IP conflict, illegal access).
- Includes voltage detection for power-related abnormalities.
-
Alarm and Audio Capabilities
- 1 alarm input and output; 1 audio input and output.
- Built-in dual microphone and 1-channel speaker for two-way audio communication.
-
Storage and Power
- Supports up to 512 GB Micro SD card.
- 12 VDC or PoE power supply for installation flexibility.
-
Protection and Alarms
- IP67-rated for weather resistance.
- Equipped with sound and light alarms featuring red and blue lights.
-
AI Features and Controls
- Supports SMD 4.0 for precise motion detection.
- AI SSA and one-tap arming/disarming functionality.
- Configurable SMD areas within warm light zones to trigger alarms.
- Datasheet
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
8MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera
-
Image Sensor and Quality
- 8-MP 1/2.8" CMOS image sensor for low luminance and high-definition images.
- Outputs a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps.
-
Video Compression and Codec
- H.265 codec for high compression with ultra-low bit rate.
- Supports ROI, SMART H.264+/H.265+, and AI-enhanced H.264/H.265 for optimized storage and bandwidth.
-
Illumination
- Built-in warm light and IR LED with up to 50 m IR range and 40 m warm light range.
-
Advanced Features
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for flexible monitoring across different scenarios.
- Intelligent monitoring with intrusion and tripwire detection, including human/vehicle classification.
-
Abnormality Detection
- Detects motion, privacy masking, scene changes, and audio anomalies.
- Monitors SD card issues (missing, full, or error) and network issues (disconnection, IP conflict, illegal access).
- Includes voltage detection for power-related abnormalities.
-
Alarm and Audio Capabilities
- 1 alarm input and output; 1 audio input and output.
- Built-in dual microphone and 1-channel speaker for two-way audio communication.
-
Storage and Power
- Supports up to 512 GB Micro SD card.
- 12 VDC or PoE power supply for installation flexibility.
-
Protection and Alarms
- IP67-rated for weather resistance.
- Equipped with sound and light alarms featuring red and blue lights.
-
AI Features and Controls
- Supports SMD 4.0 for precise motion detection.
- AI SSA and one-tap arming/disarming functionality.
- Configurable SMD areas within warm light zones to trigger alarms.
- Datasheet
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
8MP Smart Dual Light Active Deterrence Network Camera
-
Image Sensor and Quality
- 8-MP 1/1.8" CMOS image sensor for low luminance and high-definition images.
- Outputs a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps.
-
Video Compression and Codec
- H.265 codec for high compression with ultra-low bit rate.
- Supports ROI, SMART H.264+/H.265+, and AI-enhanced H.264/H.265 for optimized bandwidth and storage.
-
Illumination
- Built-in multi-core light with up to 30 m IR range and 30 m warm light range.
-
Advanced Features
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for adaptable monitoring across various scenes.
- Intelligent monitoring with intrusion and tripwire detection, including human/vehicle classification.
-
Abnormality Detection
- Detects motion, privacy masking, scene changes, and audio anomalies.
- Monitors SD card issues (missing, full, or error) and network issues (disconnection, IP conflict, illegal access).
- Includes voltage detection for power-related abnormalities.
-
Alarm and Audio Capabilities
- 1 alarm input and output; 1 audio input and output.
- Built-in dual microphone and 1-channel speaker for two-way audio communication.
-
Storage and Power
- Supports up to 512 GB Micro SD card.
- 12 VDC or PoE power supply for flexible installation.
-
Protection and Alarms
- IP67-rated for weather resistance.
- Equipped with sound and light alarms featuring red and blue lights.
-
AI Features and Controls
- Supports SMD 4.0 for precise motion detection.
- AI SSA and one-tap arming/disarming functionality.
- Configurable SMD areas within warm light zones to trigger alarms.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
8MP Smart Dual Light Active Deterrence Network Camera
-
Image Sensor and Quality
- 8-MP 1/1.8" CMOS image sensor for low luminance and high-definition images.
- Outputs a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps.
-
Video Compression and Codec
- H.265 codec for high compression with ultra-low bit rate.
- Supports ROI, SMART H.264+/H.265+, and AI-enhanced H.264/H.265 for optimized bandwidth and storage.
-
Illumination
- Built-in multi-core light with up to 30 m IR range and 30 m warm light range.
-
Advanced Features
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for adaptable monitoring across various scenes.
- Intelligent monitoring with intrusion and tripwire detection, including human/vehicle classification.
-
Abnormality Detection
- Detects motion, privacy masking, scene changes, and audio anomalies.
- Monitors SD card issues (missing, full, or error) and network issues (disconnection, IP conflict, illegal access).
- Includes voltage detection for power-related abnormalities.
-
Alarm and Audio Capabilities
- 1 alarm input and output; 1 audio input and output.
- Built-in dual microphone and 1-channel speaker for two-way audio communication.
-
Storage and Power
- Supports up to 512 GB Micro SD card.
- 12 VDC or PoE power supply for flexible installation.
-
Protection and Alarms
- IP67-rated for weather resistance.
- Equipped with sound and light alarms featuring red and blue lights.
-
AI Features and Controls
- Supports SMD 4.0 for precise motion detection.
- AI SSA and one-tap arming/disarming functionality.
- Configurable SMD areas within warm light zones to trigger alarms.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
8MP Smart Dual Light Active Deterrence Network Camera
-
Image Sensor and Quality
- 8-MP 1/1.8" CMOS image sensor for low luminance and high-definition images.
- Outputs a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps.
-
Video Compression and Codec
- H.265 codec for high compression with ultra-low bit rate.
- Supports ROI, SMART H.264+/H.265+, and AI-enhanced H.264/H.265 for optimized bandwidth and storage.
-
Illumination
- Built-in multi-core light with up to 30 m IR range and 30 m warm light range.
-
Advanced Features
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for adaptable monitoring across various scenes.
- Intelligent monitoring with intrusion and tripwire detection, including human/vehicle classification.
-
Abnormality Detection
- Detects motion, privacy masking, scene changes, and audio anomalies.
- Monitors SD card issues (missing, full, or error) and network issues (disconnection, IP conflict, illegal access).
- Includes voltage detection for power-related abnormalities.
-
Alarm and Audio Capabilities
- 1 alarm input and output; 1 audio input and output.
- Built-in dual microphone and 1-channel speaker for two-way audio communication.
-
Storage and Power
- Supports up to 512 GB Micro SD card.
- 12 VDC or PoE power supply for flexible installation.
-
Protection and Alarms
- IP67-rated for weather resistance.
- Equipped with sound and light alarms featuring red and blue lights.
-
AI Features and Controls
- Supports SMD 4.0 for precise motion detection.
- AI SSA and one-tap arming/disarming functionality.
- Configurable SMD areas within warm light zones to trigger alarms.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
8MP Smart Dual Light Active Deterrence Network Camera
-
Image Sensor and Quality
- 8-MP 1/1.8" CMOS image sensor for low luminance and high-definition images.
- Outputs a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps.
-
Video Compression and Codec
- H.265 codec for high compression with ultra-low bit rate.
- Supports ROI, SMART H.264+/H.265+, and AI-enhanced H.264/H.265 for optimized bandwidth and storage.
-
Illumination
- Built-in multi-core light with up to 30 m IR range and 30 m warm light range.
-
Advanced Features
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for adaptable monitoring across various scenes.
- Intelligent monitoring with intrusion and tripwire detection, including human/vehicle classification.
-
Abnormality Detection
- Detects motion, privacy masking, scene changes, and audio anomalies.
- Monitors SD card issues (missing, full, or error) and network issues (disconnection, IP conflict, illegal access).
- Includes voltage detection for power-related abnormalities.
-
Alarm and Audio Capabilities
- 1 alarm input and output; 1 audio input and output.
- Built-in dual microphone and 1-channel speaker for two-way audio communication.
-
Storage and Power
- Supports up to 512 GB Micro SD card.
- 12 VDC or PoE power supply for flexible installation.
-
Protection and Alarms
- IP67-rated for weather resistance.
- Equipped with sound and light alarms featuring red and blue lights.
-
AI Features and Controls
- Supports SMD 4.0 for precise motion detection.
- AI SSA and one-tap arming/disarming functionality.
- Configurable SMD areas within warm light zones to trigger alarms.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty

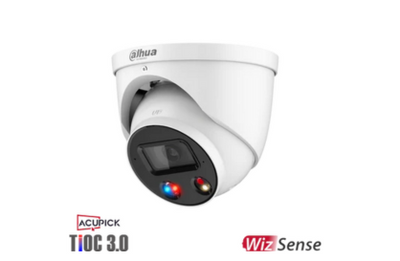

8MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera
-
Image Sensor and Quality
- 8-MP 1/2.7" CMOS image sensor for low luminance and high-definition images.
- Outputs a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps.
-
Video Compression and Codec
- H.265 codec for high compression with ultra-low bit rate.
- Supports ROI, SMART H.264+/H.265+, and AI-enhanced H.264/H.265 for optimized storage and bandwidth.
-
Illumination
- Built-in warm light and IR LED with up to 30 m illumination range for both.
-
Advanced Features
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for flexible monitoring across scenarios.
- Intelligent monitoring with intrusion and tripwire detection, including human/vehicle classification.
-
Abnormality Detection
- Detects motion, privacy masking, scene changes, and audio anomalies.
- Monitors SD card issues (missing, full, or error) and network issues (disconnection, IP conflict, illegal access).
- Includes voltage detection for power-related abnormalities.
-
Alarm and Audio Capabilities
- 1 alarm input and output; 1 audio input and output.
- Built-in dual microphone and 1-channel speaker for two-way audio communication.
-
Storage and Power
- Supports up to 256 GB Micro SD card.
- 12 VDC or PoE power supply for flexible installation.
-
Protection and Alarms
- IP67-rated for weather resistance.
- Equipped with sound and light alarms featuring red and blue lights.
-
AI Features and Controls
- Supports SMD 4.0 for accurate motion detection.
- AI SSA and one-tap arming/disarming functionality.
- Configurable SMD areas within warm light zones for alarm triggers.
- Datasheet
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
8MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera
-
Image Sensor and Quality
- 8-MP 1/2.7" CMOS image sensor for low luminance and high-definition images.
- Outputs a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps.
-
Video Compression and Codec
- H.265 codec for high compression with ultra-low bit rate.
- Supports ROI, SMART H.264+/H.265+, and AI-enhanced H.264/H.265 for optimized storage and bandwidth.
-
Illumination
- Built-in warm light and IR LED with up to 30 m illumination range for both.
-
Advanced Features
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for flexible monitoring across scenarios.
- Intelligent monitoring with intrusion and tripwire detection, including human/vehicle classification.
-
Abnormality Detection
- Detects motion, privacy masking, scene changes, and audio anomalies.
- Monitors SD card issues (missing, full, or error) and network issues (disconnection, IP conflict, illegal access).
- Includes voltage detection for power-related abnormalities.
-
Alarm and Audio Capabilities
- 1 alarm input and output; 1 audio input and output.
- Built-in dual microphone and 1-channel speaker for two-way audio communication.
-
Storage and Power
- Supports up to 256 GB Micro SD card.
- 12 VDC or PoE power supply for flexible installation.
-
Protection and Alarms
- IP67-rated for weather resistance.
- Equipped with sound and light alarms featuring red and blue lights.
-
AI Features and Controls
- Supports SMD 4.0 for accurate motion detection.
- AI SSA and one-tap arming/disarming functionality.
- Configurable SMD areas within warm light zones for alarm triggers.
- Datasheet
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
8MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera
-
Image Sensor and Quality
- 8-MP 1/2.7" CMOS image sensor for low luminance and high-definition images.
- Outputs a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps.
-
Video Compression and Codec
- H.265 codec for high compression with ultra-low bit rate.
- Supports ROI, SMART H.264+/H.265+, and AI-enhanced H.264/H.265 for optimized storage and bandwidth.
-
Illumination
- Built-in warm light and IR LED with up to 30 m illumination range for both.
-
Advanced Features
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for flexible monitoring across scenarios.
- Intelligent monitoring with intrusion and tripwire detection, including human/vehicle classification.
-
Abnormality Detection
- Detects motion, privacy masking, scene changes, and audio anomalies.
- Monitors SD card issues (missing, full, or error) and network issues (disconnection, IP conflict, illegal access).
- Includes voltage detection for power-related abnormalities.
-
Alarm and Audio Capabilities
- 1 alarm input and output; 1 audio input and output.
- Built-in dual microphone and 1-channel speaker for two-way audio communication.
-
Storage and Power
- Supports up to 256 GB Micro SD card.
- 12 VDC or PoE power supply for flexible installation.
-
Protection and Alarms
- IP67-rated for weather resistance.
- Equipped with sound and light alarms featuring red and blue lights.
-
AI Features and Controls
- Supports SMD 4.0 for accurate motion detection.
- AI SSA and one-tap arming/disarming functionality.
- Configurable SMD areas within warm light zones for alarm triggers.
- Datasheet
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
8MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera
-
Image Sensor and Quality
- 8-MP 1/2.7" CMOS image sensor for low luminance and high-definition images.
- Outputs a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps.
-
Video Compression and Codec
- H.265 codec for high compression with ultra-low bit rate.
- Supports ROI, SMART H.264+/H.265+, and AI-enhanced H.264/H.265 for optimized storage and bandwidth.
-
Illumination
- Built-in warm light and IR LED with up to 30 m illumination range for both.
-
Advanced Features
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for flexible monitoring across scenarios.
- Intelligent monitoring with intrusion and tripwire detection, including human/vehicle classification.
-
Abnormality Detection
- Detects motion, privacy masking, scene changes, and audio anomalies.
- Monitors SD card issues (missing, full, or error) and network issues (disconnection, IP conflict, illegal access).
- Includes voltage detection for power-related abnormalities.
-
Alarm and Audio Capabilities
- 1 alarm input and output; 1 audio input and output.
- Built-in dual microphone and 1-channel speaker for two-way audio communication.
-
Storage and Power
- Supports up to 256 GB Micro SD card.
- 12 VDC or PoE power supply for flexible installation.
-
Protection and Alarms
- IP67-rated for weather resistance.
- Equipped with sound and light alarms featuring red and blue lights.
-
AI Features and Controls
- Supports SMD 4.0 for accurate motion detection.
- AI SSA and one-tap arming/disarming functionality.
- Configurable SMD areas within warm light zones for alarm triggers.
- Datasheet
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
8MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera
-
Image Sensor and Quality
- 8-MP 1/2.7" CMOS image sensor for low luminance and high-definition images.
- Outputs a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps.
-
Video Compression and Codec
- H.265 codec for high compression with ultra-low bit rate.
- Supports ROI, SMART H.264+/H.265+, and AI-enhanced H.264/H.265 for optimized storage and bandwidth.
-
Illumination
- Built-in warm light and IR LED with up to 30 m illumination range for both.
-
Advanced Features
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for flexible monitoring across scenarios.
- Intelligent monitoring with intrusion and tripwire detection, including human/vehicle classification.
-
Abnormality Detection
- Detects motion, privacy masking, scene changes, and audio anomalies.
- Monitors SD card issues (missing, full, or error) and network issues (disconnection, IP conflict, illegal access).
- Includes voltage detection for power-related abnormalities.
-
Alarm and Audio Capabilities
- 1 alarm input and output; 1 audio input and output.
- Built-in dual microphone and 1-channel speaker for two-way audio communication.
-
Storage and Power
- Supports up to 256 GB Micro SD card.
- 12 VDC or PoE power supply for flexible installation.
-
Protection and Alarms
- IP67-rated for weather resistance.
- Equipped with sound and light alarms featuring red and blue lights.
-
AI Features and Controls
- Supports SMD 4.0 for accurate motion detection.
- AI SSA and one-tap arming/disarming functionality.
- Configurable SMD areas within warm light zones for alarm triggers.
- Datasheet
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
8MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera
-
Image Sensor and Quality
- 8-MP 1/2.7" CMOS image sensor for low luminance and high-definition images.
- Outputs a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps.
-
Video Compression and Codec
- H.265 codec for high compression with ultra-low bit rate.
- Supports ROI, SMART H.264+/H.265+, and AI-enhanced H.264/H.265 for optimized storage and bandwidth.
-
Illumination
- Built-in warm light and IR LED with up to 30 m illumination range for both.
-
Advanced Features
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for flexible monitoring across scenarios.
- Intelligent monitoring with intrusion and tripwire detection, including human/vehicle classification.
-
Abnormality Detection
- Detects motion, privacy masking, scene changes, and audio anomalies.
- Monitors SD card issues (missing, full, or error) and network issues (disconnection, IP conflict, illegal access).
- Includes voltage detection for power-related abnormalities.
-
Alarm and Audio Capabilities
- 1 alarm input and output; 1 audio input and output.
- Built-in dual microphone and 1-channel speaker for two-way audio communication.
-
Storage and Power
- Supports up to 256 GB Micro SD card.
- 12 VDC or PoE power supply for flexible installation.
-
Protection and Alarms
- IP67-rated for weather resistance.
- Equipped with sound and light alarms featuring red and blue lights.
-
AI Features and Controls
- Supports SMD 4.0 for accurate motion detection.
- AI SSA and one-tap arming/disarming functionality.
- Configurable SMD areas within warm light zones for alarm triggers.
- Datasheet
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
> Outputs max.6MP(3072 x 2048)@25/30fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 40m.
> ROI, SMARTH.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
> Rotation mode, WDR, 3DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SDcard,SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G MicroSD card. built-in Mic.
> 12V DC/PoEpowersupply, easy for installation.
> IP67 protection.
> SMD 4.0, AISSA.
- DH-IPC-HDW3666TP-ZS-AUS Specification :
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
> Outputs max.6MP(3072 x 2048)@25/30fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 40m.
> ROI, SMARTH.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
> Rotation mode, WDR, 3DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SDcard,SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G MicroSD card. built-in Mic.
> 12V DC/PoEpowersupply, easy for installation.
> IP67 protection.
> SMD 4.0, AISSA.
- DH-IPC-HDW3666TP-ZS-AUS Specification :
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
DH-IPC-HDW3666EMP-S-AUS-BLK Dahua 6MP Turret Fixed Camera
> 6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 6 MP (3072 x 2048) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 50 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
DH-IPC-HDW3666EMP-S-AUS-BLK Dahua 6MP Turret Fixed Camera
> 6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 6 MP (3072 x 2048) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 50 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
DH-IPC-HDW3666EMP-S-AUS-BLK Dahua 6MP Turret Fixed Camera
> 6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 6 MP (3072 x 2048) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 50 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
DH-IPC-HDW3666EMP-S-AUS-BLK Dahua 6MP Turret Fixed Camera
> 6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 6 MP (3072 x 2048) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 50 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
> Outputs max. 6 MP (3072 x 2048) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 50 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
> Outputs max. 6 MP (3072 x 2048) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 50 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
> Outputs max. 6 MP (3072 x 2048) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 50 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
> Outputs max. 6 MP (3072 x 2048) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 50 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
