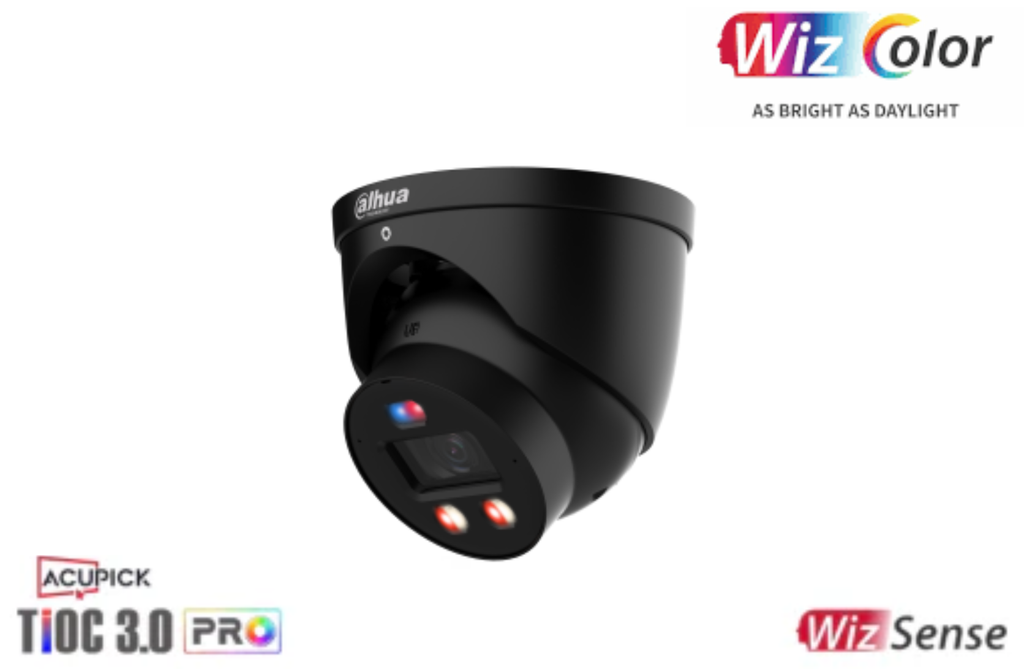

Dahua IPC-HDW3649H-AS-PV-PRO-ANZ 6MP WizColor TiOC PRO Fixed-focal Eyeball WizSense…
Regular price
$411.43
6MP WizColor TiOC PRO Fixed-focal Eyeball WizSense Network Camera
Overview
-
1/1.8" CMOS image sensor with ultra-low illumination and high-definition imaging
-
Maximum resolution 6 MP (3288 × 1850) at 25/30 fps
-
Supports H.265 / H.264 video compression with ultra-low bitrate
-
Built-in multi-core dual illuminator (IR + warm light) with up to 30 m range
-
Sound and light active deterrence with red and blue warning lights
-
SMD 4.0, AI SSA, and one-tap arming/disarming
-
IP67 weather protection
-
Power via 12 VDC or PoE
- Datasheet
Key Features
-
WizColor technology for superior colour imaging in low-light environments
-
Intelligent perimeter protection with accurate human and vehicle classification
-
Smart Dual Light with adaptive illumination control
-
Built-in dual microphones and 1-channel speaker supporting two-way audio
-
Supports Micro SD card up to 512 GB
-
120 dB WDR for high-contrast scenes
Camera
-
Image Sensor: 1/1.8" CMOS
-
Max. Resolution: 3288 (H) × 1850 (V)
-
Scanning System: Progressive
-
Electronic Shutter Speed: Auto/Manual, 1/3 s – 1/100,000 s
-
Min. Illumination:
-
0.0002 lux @ F1.0 (Color, 30 IRE)
-
0.0001 lux @ F1.0 (B/W, 30 IRE)
-
0 lux (Illuminator on)
-
-
S/N Ratio: > 56 dB
-
ROM: 256 MB
-
RAM: 1 GB
Illumination
-
IR Distance: Up to 30 m (98.43 ft)
-
Warm Light Distance: Up to 30 m (98.43 ft)
-
Illuminator Type: Multi-core (IR + warm light)
-
Illuminator Control: Auto / Manual
-
Illuminator Quantity: 2
Lens
-
Lens Type: Fixed-focal
-
Lens Mount: M16
-
Focal Length Options: 2.8 mm, 3.6 mm
-
Max. Aperture: F1.0
-
Iris Control: Fixed
Field of View
-
2.8 mm: Horizontal 109°, Vertical 59°, Diagonal 131°
-
3.6 mm: Horizontal 93°, Vertical 50°, Diagonal 111°
Close Focus Distance
-
2.8 mm: 3.2 m (10.50 ft)
-
3.6 mm: 4.4 m (14.44 ft)
DORI Performance
-
2.8 mm:
-
Detect: 70.2 m
-
Observe: 28.1 m
-
Recognize: 14.0 m
-
Identify: 7.0 m
-
-
3.6 mm:
-
Detect: 85.6 m
-
Observe: 34.3 m
-
Recognize: 17.1 m
-
Identify: 8.6 m
-
DORI (EN-62676-4) values are for reference only and do not represent intelligent function distances.
Intelligent Functions
-
Perimeter Protection: Intrusion, tripwire, stay detection, loitering detection (human and vehicle classification)
-
Face Detection (full image): Face detection, snapshot, snapshot optimisation, face enhancement, face angle filtering
-
SMD: SMD 4.0
-
AcuPick: Deep-learning based target search for people and motor vehicles
-
AI SSA: Adaptive scene-based image optimisation
-
Smart Search: Works with Smart NVR for intelligent event search and playback
Video
-
Video Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)
-
AI Coding: AI H.265, AI H.264 (Smart H.265+ / H.264+)
-
Video Frame Rate:
-
Main Stream: 3288 × 1850 @ 1–25/30 fps
-
Sub Stream: 1920 × 1080 @ 1–25/30 fps
-
Third Stream: 1920 × 1080 @ 1–25/30 fps
-
-
Stream Capability: 3 streams
-
Bit Rate Control: CBR / VBR / ABR
-
Video Bit Rate:
-
H.264: 3 kbps – 16,384 kbps
-
H.265: 3 kbps – 16,384 kbps
-
-
Day/Night Mode: Auto (ICR) / Color / B/W
-
WDR: 120 dB
-
BLC / HLC: Supported
-
White Balance: Auto, natural, street lamp, outdoor, manual, regional custom
-
Gain Control: Auto
-
Noise Reduction: 3D NR
-
Smart Illumination: Yes
-
Smart Dual Light: Yes
-
Defog: Yes
-
Image Rotation: 0° / 90° / 180° / 270°
-
Mirror: Supported
-
Privacy Masking: 8 areas
-
LDC: Supported
Audio
-
Built-in Microphone: Dual mic
-
Built-in Speaker: Yes
-
Max Power Consumption (Speaker): 2 W
-
Max Sound Level: 110 dB at 10 cm
-
Audio Compression: PCM, G.711a, G.711Mu, G.726, G.723
Alarm
-
Alarm Events: Motion detection, video tampering, intrusion, tripwire, loitering detection, stay detection, face detection, scene change, audio detection, voltage detection, SMD, SD card exceptions, network exceptions
Network
-
Network Port: RJ-45 (10/100 Base-T)
-
Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, RTSP, RTP, RTCP, FTP, SFTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, P2P, ONVIF, Multicast, Bonjour, Auto Registration
-
Interoperability: ONVIF Profile S / G / T / M, CGI
-
Max Users: 20 (total bandwidth 64 Mbps)
Storage
-
Micro SD Card: Supports up to 512 GB
-
Storage Methods: FTP, SFTP, NAS
Interface
-
Audio Input: 1-channel (RCA)
-
Audio Output: 1-channel (RCA)
-
Alarm Input: 1-channel (wet contact, 5 mA, 3–5 VDC)
-
Alarm Output: 1-channel (wet contact, 300 mA, 12 VDC)
Power
-
Power Supply: 12 VDC / PoE
-
Power Consumption:
-
Basic: 4.1 W (12 VDC), 6 W (PoE)
-
Max: 8.2 W (12 VDC), 10 W (PoE)
-
-
Dual Power Backup: Device continues operating if one power source is disconnected
Environment & Construction
-
Operating Temperature: –40 °C to +60 °C
-
Operating Humidity: ≤ 95%
-
Protection Rating: IP67
-
Casing Material: Metal
Dimensions & Weight
-
Dimensions: Φ122.0 mm × 116.1 mm
-
Net Weight: 0.8 kg
-
Gross Weight: 1.0 kg
Warranty: 3 Year Dahua ANZ Manufacturer Warranty
