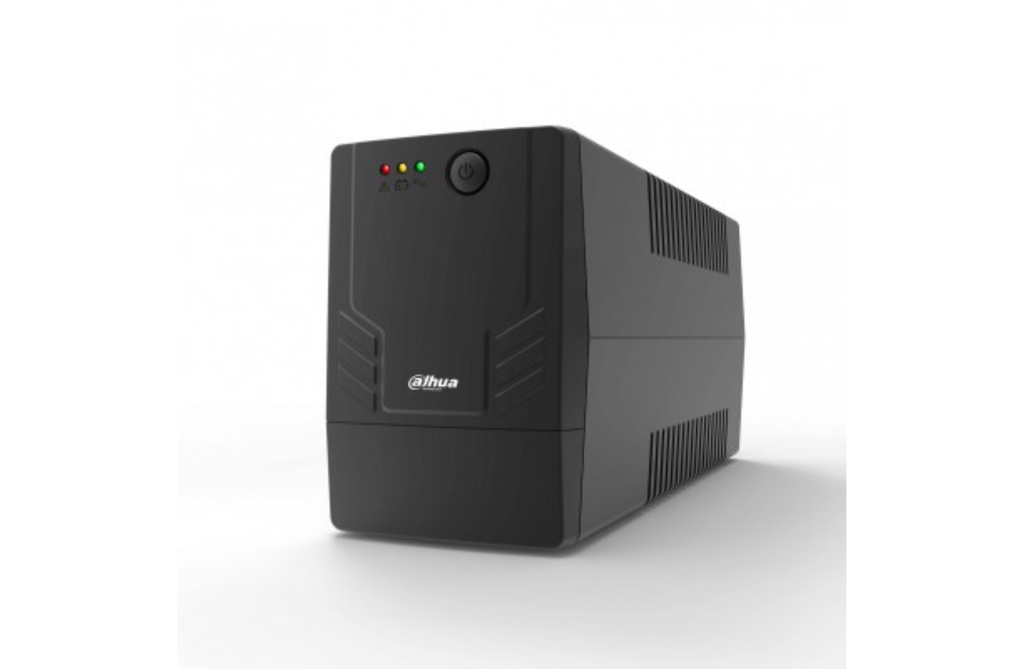

Dahua PFM3350-600 600VA/360W Uninterruptible Power Supply

Dahua PFM3350-600 600VA/360W Uninterruptible Power Supply
Regular price $98.57

600VA / 360W Uninterruptible Power Supply

  • Wide Voltage Input Range: 170–280 VAC — adapts easily to fluctuations and various grid environments.

  • Silent Operation: Ensures a quiet and peaceful working environment.

  • Digital Voltage Stabilization: Maintains consistent and stable power output.

  • Fast Charging: Recharges fully in just 4 hours.

  • Rapid Switching: Provides seamless power transfer within 4–8 milliseconds.

  • Comprehensive Protection: Safeguards against overload, short circuit, overcharging, and over-discharge.



Specifications — 600VA / 360W Uninterruptible Power Supply

Capacity

  • Capacity: 600 VA / 360 W


Input

  • Input Voltage: 170–280 VAC

  • Input Current: 2.9 A

  • Rated Input Frequency: 50/60 Hz

  • Power Factor: ≥ 0.6


Output

  • Output Voltage: 230 VAC (default)

  • Output Current: 2.7 A

  • Output Power: 600 VA / 360 W

  • Output Frequency: 50 Hz ± 0.1 Hz

  • Switch Time: Typical 4–8 ms

  • Output Wave:

    • AC Mode: Pure sine wave

    • Battery Mode: Simulated sine wave


Battery

  • Built-in Battery: Yes

  • Battery Type: Lead-acid

  • Quantity: 1 × 7Ah

  • Charging Current: 1 A

  • Limited Charge Voltage: 13.7 V/pcs

  • Charging Time: 4–6 hours (to 90%)

  • Maximum Backup Time: 3 minutes (full charge)


Indicators

  • Status Indicator Light:

    • Battery Mode: Red light flashes once every 10 seconds

    • Mains Power Mode: Green light solid on

    • Fault Mode: Red light solid on

  • Alarm Indicator:

    • Battery Mode: Beeps once every 10 seconds

    • Low Battery: Beeps once every second

    • Overload: Beeps once every 0.5 seconds and continuous beep for fault


Protection

  • Protection Types: Overload, battery overcharge, over-discharge

  • Overload Capacity: 30 seconds


Plugs & Sockets

  • Input Cable Length: 1.2 m (3.94 ft)

  • Number of Output Sockets: 2


Structure

  • Product Dimensions (L × W × H): 297 × 101 × 142 mm (11.69" × 3.98" × 5.59")

  • Packaging Dimensions (L × W × H): 340 × 140 × 220 mm (13.39" × 5.51" × 8.66")

  • Casing Material: Plastic

  • Color: Black

  • Net Weight: 4.4 kg (9.70 lb)

  • Gross Weight: 4.6 kg (10.14 lb)


Environment

  • Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)

  • Operating Humidity: 0%–90%, non-condensing

  • Storage Temperature: –15 °C to +55 °C (+5 °F to +131 °F)

  • Storage Humidity: 0%–90%, non-condensing


Certifications

  • CE Certified

Warranty: 3 Year Dahua ANZ Manufacturer Warranty
