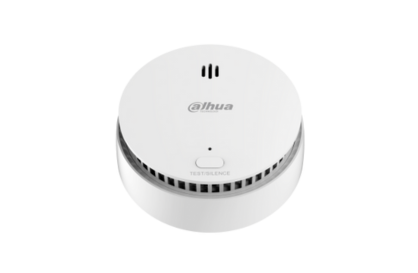

Dahua DHI-HY-SA21A-W2 Wireless Alarm Smoke Alarm

Dahua DHI-HY-SA21A-W2 Wireless Alarm Smoke Alarm
Regular price $350.00

HY-SA21A-W2 Wireless Smoke Alarm

  • Split-spectrum sensor technology
  • Test and silence features in one single button
  • Loud sound output: Over 85 dB(A) at 3 meters
  • Low power consumption: Minimal quiescent current usage
  • Advanced circuit design: Surface-mount device (SMD) PCB
  • Low battery warning signal for timely maintenance



Specifications

Working Principle

  • Collection Type: Smoke
  • Sampling Period: 10 seconds
  • Sensor Type: Photoelectric

Alarm

  • Alarm Type: Smoke alarm, fault warning, low battery warning
  • Alarm Volume: 85dB–90dB(A) at 3 m (9.84 ft)
  • Alarm Mode: Visual and audible alarm
  • Silence Function: Yes
  • Silence Duration: About 12 minutes
  • Alarm Response Threshold: 0.2 dB/m - 0.3 dB/m

Basic Parameters

  • Indicator Light: Red and green LED indicator
  • LED Instructions:
    • Standby: Green indicator flashes once per minute
    • Alarm: Red indicator flashes once per second
    • Fault: Red indicator flashes once per minute
    • Low Battery Warning: Red indicator flashes once per minute
  • Coverage Area:
    • When the height of the space is less than 8 m (26.25 ft), the protection area per device is 20 m²–40 m²

Power Supply

  • Battery Life: 3 years
  • Operating Voltage: 3V CR123A lithium battery (replaceable)
  • Operating Current:
    • Monitoring current: ≤ 35µA
    • Alarm current: ≤ 35mA

Operating Environment

  • Indoor Use
  • Operating Temperature: -10°C to +55°C (+14°F to +131°F)
  • Operating Humidity: ≤ 95% RH (non-condensing)

Appearance

  • Color: White
  • Casing Material: ABS
  • Dimensions: φ98 mm × H43.1 mm (φ3.85" × H1.70")
  • Weight: 140 g (0.30 lb)

Installation

  • Mounting Type: Ceiling mount

Certifications & Compliance

  • Certifications: TÜV and CE listed
  • Compliance Standard: EN 14604:2005+AC:2008

Wireless Communication

  • Carrier Frequency: 433.1 MHz–434.6 MHz
  • Communication Distance: Up to 1000 m (3280.84 ft) in open space
  • Communication Mechanism: Two-way
  • Frequency Hopping: Yes
  • Encryption Mode: AES128

Warranty: 3 Year Dahua ANZ Manufacturer Warranty
