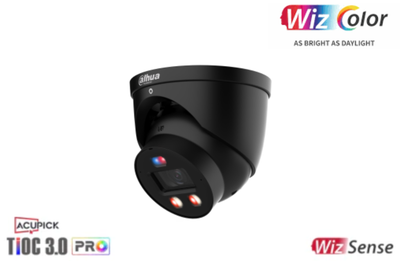

8MP WizColor TiOC PRO Fixed-focal Eyeball WizSense Network Camera

Overview

• 8 MP 1/1.8" CMOS image sensor with low luminance and high-definition imaging

• Maximum resolution 8 MP (3840 × 2160) at 25/30 fps

• H.265 / H.264 video compression with ultra-low bitrate

• Built-in multi-core dual light (IR + warm light) with up to 30 m illumination

• Advanced encoding: ROI, Smart H.264+/H.265+, AI H.264/H.265

• Image enhancements: rotation mode, 120 dB WDR, 3D NR, HLC, BLC, digital watermarking

• Intelligent monitoring: intrusion, tripwire (human/vehicle classification), stay detection, loitering detection, face detection (full image)

• Abnormality detection: motion, privacy masking, scene change, audio detection, SD card and network exceptions, voltage detection

• I/O and storage: Alarm 1 in/1 out, Audio 1 in/1 out, Micro SD up to 512 GB

• Built-in dual microphones and 1-channel speaker with two-way audio

• Sound & light alarm (red and blue warning lights)

• SMD 4.0, AI SSA, and one-tap arming/disarming

• Power via 12 VDC or PoE

• IP67 weather protection

• SMD zones can be configured within warm light areas for alarm triggering

• Datasheet

Camera

• Image Sensor: 1/1.8" CMOS

• Max. Resolution: 3840 (H) × 2160 (V)

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual, 1/3 s – 1/100,000 s

• Min. Illumination:

  • 0.0004 lux @ F1.0 (Color, 30 IRE)

  • 0.0002 lux @ F1.0 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• S/N Ratio: > 56 dB

• ROM: 256 MB

• RAM: 1 GB

Illumination

• IR Distance: Up to 30 m (98.43 ft)

• Warm Light Distance: Up to 30 m (98.43 ft)

• Illuminator Type: Multi-core (IR + warm light)

• Illuminator Control: Auto / Manual

• Illuminator Quantity: 2

Angle Adjustment

• Pan: 0° – 360°

• Tilt: 0° – 78°

• Rotation: 0° – 360°

Lens

• Lens Type: Fixed-focal

• Lens Mount: M16

• Focal Length Options: 2.8 mm, 3.6 mm

• Max. Aperture: F1.0

• Iris Control: Fixed

Field of View

• 2.8 mm: Horizontal 109°, Vertical 59°, Diagonal 131°

• 3.6 mm: Horizontal 93°, Vertical 50°, Diagonal 111°

Close Focus Distance

• 2.8 mm: 3.2 m (10.50 ft)

• 3.6 mm: 4.4 m (14.44 ft)

DORI Performance

• 2.8 mm:

  • Detect: 82.0 m (269.03 ft)

  • Observe: 32.8 m (107.64 ft)

  • Recognize: 16.4 m (53.81 ft)

  • Identify: 8.2 m (26.90 ft)

• 3.6 mm:

  • Detect: 100.0 m (328.08 ft)

  • Observe: 40.0 m (131.23 ft)

  • Recognize: 20.0 m (65.62 ft)

  • Identify: 10.0 m (32.81 ft)

DORI (EN-62676-4) values are reference only and do not represent intelligent function distances.

Intelligent Functions

• IVS (Perimeter Protection): Intrusion, tripwire, stay detection, loitering detection (human/vehicle classification)

• Face Detection (Full Image): face detection, snapshot, snapshot optimisation, face enhancement, snapshot strategies, face angle filtering, optimisation time settings

• SMD: SMD 4.0

• AcuPick: AI-based target search for people and motor vehicles (with compatible back-end devices)

• AI SSA: Intelligent scene self-adaptation using deep learning

• Smart Search: Works with Smart NVR for intelligent event search, extraction, and event video merging

Video

• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)

• AI Coding: AI H.265, AI H.264 (Smart H.265+ / Smart H.264+)

• Video Frame Rate:

  • Main Stream: 3840 × 2160 @ 1–25/30 fps

  • Sub Stream: 1920 × 1080 @ 1–25/30 fps

  • Third Stream: 1920 × 1080 @ 1–25/30 fps

• Stream Capability: 3 streams

• Supported Resolutions:

  • 8M (3840 × 2160), 6M (3200 × 1800), 5M (3072 × 1728)

  • 4M (2688 × 1520 / 2560 × 1440), 3M (2304 × 1296)

  • 1080p, 720p, D1, VGA, CIF

• Bit Rate Control: CBR / VBR / ABR

• Video Bit Rate:

  • H.264: 3 kbps – 16,384 kbps

  • H.265: 3 kbps – 16,384 kbps


• Day/Night Mode: Auto (ICR) / Color / B/W

• WDR: 120 dB

• BLC / HLC: Supported

• Scene Self-adaptation (SSA): Yes

• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Motion Detection: On/Off (4 rectangular areas)

• Region of Interest: 4 configurable areas

• Smart Illumination: Yes

• Smart Dual Light: Yes

• Defog: Yes

• Image Rotation: 0° / 90° / 180° / 270° (90°/270° supported at 2688 × 1520 and below)

• Mirror: Supported

• Privacy Masking: 8 areas

• LDC: Supported

Audio

• Built-in Microphone: Yes, built-in dual mic

• Built-in Speaker: Yes (max power 2 W; max sound level 110 dB at 10 cm)

• Audio Compression: PCM, G.711a, G.711Mu, G.726, G.723

• Two-way Audio: Supported (with audio input/output)

Alarm

• Alarm Events: No SD card, SD card full/error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, stay detection, loitering detection, face detection (full image), scene change, audio detection, voltage detection, SMD, security exceptions

• Alarm Input: 1 channel (wet contact, 5 mA, 3–5 VDC)

• Alarm Output: 1 channel (wet contact, 300 mA, 12 VDC)

Network

• Network Port: RJ-45 (10/100 Base-T)

• SDK / API: Supported

• Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Bonjour, Auto Registration

• Interoperability: ONVIF Profile S / G / T / M, CGI

• Max Users: 20 (total bandwidth 64 Mbps)

Storage

• Micro SD Card: Up to 512 GB

• Storage Methods: FTP, SFTP, NAS

Software & Access

• Browser: IE11, Chrome, Firefox

• Management Software: Smart PSS Lite, DSS, DMSS, DoLynk Care

• Mobile Client: iOS, Android

Security

• Security Features: Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certificate generation/import, Syslog, HTTPS, 802.1x, trusted boot, trusted execution, trusted upgrade

Power

• Power Supply: 12 VDC / PoE

• Dual Power Backup: If adapter and PoE are connected, disconnect one source — device continues operating (no restart)

• Power Consumption:

  • Basic: 4.1 W (12 VDC), 6 W (PoE)

  • Max (H.265+ / WDR / warm light / siren & light deterrence / intelligence on): 8.2 W (12 VDC), 10 W (PoE)

Environment & Physical

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)

• Operating Humidity: ≤ 95%

• Protection Rating: IP67

• Casing Material: Metal

• Dimensions: Φ122.0 mm × 116.1 mm

• Net Weight: 0.8 kg

• Gross Weight: 1.0 kg

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

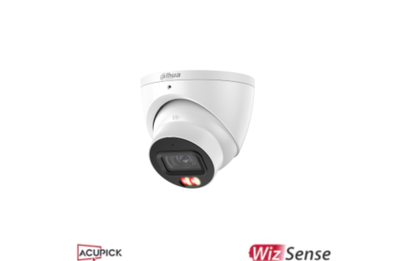

6MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera

Overview

• 6 MP 1/2.7" CMOS image sensor with low luminance and high-definition imaging

• Maximum resolution 6 MP (3288 × 1850) at 25/30 fps

• H.265 / H.264 video compression with ultra-low bitrate

• Built-in multi-core dual light (IR + warm light) with up to 30 m illumination

• Supports SMD 4.0 and AI SSA

• Supports Micro SD card up to 512 GB

• Built-in microphone

• Power via 12 VDC or PoE (802.3af)

• IP67 weather protection

• Datasheet

Key Features

• Smart Dual Light with adaptive IR and warm light switching

• Intelligent perimeter protection with human and vehicle classification

• Flexible encoding with Smart H.264+/H.265+ and AI H.264/H.265

• Wide dynamic range (120 dB WDR) for complex lighting environments

• SMD detection zones can be configured within warm light areas for alarm triggering

Camera

• Image Sensor: 1/2.7" CMOS

• Max. Resolution: 3288 (H) × 1850 (V)

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual, 1/3 s – 1/100,000 s

• Min. Illumination:

  • 0.005 lux @ F1.4 (Color, 30 IRE)

  • 0.0005 lux @ F1.4 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• S/N Ratio: > 56 dB

• ROM: 256 MB

• RAM: 1 GB

Illumination

• IR Distance: Up to 30 m (98.43 ft)

• Warm Light Distance: Up to 30 m (98.43 ft)

• Illuminator Type: Multi-core (IR + warm light)

• Illuminator Control: Auto / Manual

• Illuminator Quantity: 2

Angle Adjustment

• Pan: 0° – 360°

• Tilt: 0° – 80°

• Rotation: 0° – 360°

Lens

• Lens Type: Fixed-focal

• Lens Mount: M12

• Focal Length Options: 2.8 mm, 3.6 mm

• Max. Aperture: F1.4

• Iris Control: Fixed

Field of View

• 2.8 mm: Horizontal 110°, Vertical 58°, Diagonal 132°

• 3.6 mm: Horizontal 86°, Vertical 49°, Diagonal 100°

Close Focus Distance

• 2.8 mm: 1.4 m (4.59 ft)

• 3.6 mm: 1.9 m (6.23 ft)

DORI Performance

• 2.8 mm:

  • Detect: 84.8 m

  • Observe: 33.9 m

  • Recognize: 17.0 m

  • Identify: 8.5 m

• 3.6 mm:

  • Detect: 98.7 m

  • Observe: 39.5 m

  • Recognize: 19.7 m

  • Identify: 9.9 m

DORI (EN-62676-4) values are reference only and do not represent intelligent function distances.

Intelligent Functions

• IVS (Perimeter Protection): Intrusion, tripwire with accurate human and vehicle classification

• SMD: SMD 4.0

• AcuPick: AI-based target search for people and motor vehicles

• AI SSA: Intelligent scene self-adaptation

• Smart Search: Works with Smart NVR for intelligent event extraction and playback

Video

• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)

• AI Coding: AI H.265, AI H.264 (Smart H.264+ / H.265+)

• Video Frame Rate:

  • Main Stream: 3288 × 1850 @ 1–25/30 fps

  • Sub Stream: 1920 × 1080 @ 1–25/30 fps

  • Third Stream: 1920 × 1080 @ 1–25/30 fps

• Streaming Capability: 3 streams

• Bit Rate Control: VBR / CBR / ABR

• Video Bit Rate:

  • H.264: 3 kbps – 16,384 kbps

  • H.265: 3 kbps – 16,384 kbps


• Day/Night Mode: Auto (ICR) / Color / B/W

• WDR: 120 dB

• BLC / HLC: Supported

• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom

• Gain Control: Auto / Manual

• Noise Reduction: 3D NR

• Motion Detection: On/Off (4 rectangular areas)

• Region of Interest: 4 configurable areas

• Smart Illumination: Yes

• Smart Dual Light: Yes

• Defog: Yes

• Image Rotation: 0° / 90° / 180° / 270°

• Mirror: Supported

• Privacy Masking: 8 areas

• LDC: Supported

Audio

• Built-in Microphone: Yes

• Audio Compression: PCM, G.711a, G.711Mu, G.726, G.723

Alarm

• Alarm Events: Motion detection, video tampering, intrusion, tripwire, scene changing, audio detection, voltage detection, SMD, SD card exceptions, network exceptions, illegal access

Network

• Network Port: RJ-45 (10/100 Base-T)

• SDK / API: Supported

• Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, RTSP, RTP, RTCP, FTP, SFTP, SMTP, DHCP, DNS, DDNS, QoS, NTP, SNMP, UPnP, P2P

• Interoperability: ONVIF Profile S / G / T / M, CGI

• Max Users: 20 (total bandwidth 64 Mbps)

Storage

• Storage Media: Micro SD card (up to 512 GB), FTP, SFTP, NAS

Software & Access

• Browser: IE11, Chrome, Firefox

• Management Software: Smart PSS Lite, DSS, DMSS, DoLynk Care

• Mobile Client: iOS, Android

Security

• Security Features: Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certificate support, HTTPS, 802.1x, trusted boot, trusted execution, trusted upgrade

Power

• Power Supply: 12 VDC / PoE (802.3af)

• Dual Power Backup: Device continues operating if one power source is disconnected

• Power Consumption:

  • Basic: 3.7 W (12 VDC), 5.3 W (PoE)

  • Max: 7.4 W (12 VDC), 9.5 W (PoE)

Environment

• Operating Temperature: –40 °C to +60 °C

• Operating Humidity: ≤ 95% RH, non-condensing

• Storage Temperature: –40 °C to +60 °C

• Storage Humidity: ≤ 95% RH, non-condensing

Physical

• Protection Rating: IP67

• Casing Material: Metal

• Dimensions: 105.5 mm × Φ122.0 mm

• Net Weight: 0.53 kg

• Gross Weight: 0.71 kg

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

6MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera

Overview

• 6 MP 1/2.7" CMOS image sensor with low luminance and high-definition imaging

• Maximum resolution 6 MP (3288 × 1850) at 25/30 fps

• H.265 / H.264 video compression with ultra-low bitrate

• Built-in multi-core dual light (IR + warm light) with up to 30 m illumination

• Supports SMD 4.0 and AI SSA

• Supports Micro SD card up to 512 GB

• Built-in microphone

• Power via 12 VDC or PoE (802.3af)

• IP67 weather protection

• Datasheet

Key Features

• Smart Dual Light with adaptive IR and warm light switching

• Intelligent perimeter protection with human and vehicle classification

• Flexible encoding with Smart H.264+/H.265+ and AI H.264/H.265

• Wide dynamic range (120 dB WDR) for complex lighting environments

• SMD detection zones can be configured within warm light areas for alarm triggering

Camera

• Image Sensor: 1/2.7" CMOS

• Max. Resolution: 3288 (H) × 1850 (V)

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual, 1/3 s – 1/100,000 s

• Min. Illumination:

  • 0.005 lux @ F1.4 (Color, 30 IRE)

  • 0.0005 lux @ F1.4 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• S/N Ratio: > 56 dB

• ROM: 256 MB

• RAM: 1 GB

Illumination

• IR Distance: Up to 30 m (98.43 ft)

• Warm Light Distance: Up to 30 m (98.43 ft)

• Illuminator Type: Multi-core (IR + warm light)

• Illuminator Control: Auto / Manual

• Illuminator Quantity: 2

Angle Adjustment

• Pan: 0° – 360°

• Tilt: 0° – 80°

• Rotation: 0° – 360°

Lens

• Lens Type: Fixed-focal

• Lens Mount: M12

• Focal Length Options: 2.8 mm, 3.6 mm

• Max. Aperture: F1.4

• Iris Control: Fixed

Field of View

• 2.8 mm: Horizontal 110°, Vertical 58°, Diagonal 132°

• 3.6 mm: Horizontal 86°, Vertical 49°, Diagonal 100°

Close Focus Distance

• 2.8 mm: 1.4 m (4.59 ft)

• 3.6 mm: 1.9 m (6.23 ft)

DORI Performance

• 2.8 mm:

  • Detect: 84.8 m

  • Observe: 33.9 m

  • Recognize: 17.0 m

  • Identify: 8.5 m

• 3.6 mm:

  • Detect: 98.7 m

  • Observe: 39.5 m

  • Recognize: 19.7 m

  • Identify: 9.9 m

DORI (EN-62676-4) values are reference only and do not represent intelligent function distances.

Intelligent Functions

• IVS (Perimeter Protection): Intrusion, tripwire with accurate human and vehicle classification

• SMD: SMD 4.0

• AcuPick: AI-based target search for people and motor vehicles

• AI SSA: Intelligent scene self-adaptation

• Smart Search: Works with Smart NVR for intelligent event extraction and playback

Video

• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)

• AI Coding: AI H.265, AI H.264 (Smart H.264+ / H.265+)

• Video Frame Rate:

  • Main Stream: 3288 × 1850 @ 1–25/30 fps

  • Sub Stream: 1920 × 1080 @ 1–25/30 fps

  • Third Stream: 1920 × 1080 @ 1–25/30 fps

• Streaming Capability: 3 streams

• Bit Rate Control: VBR / CBR / ABR

• Video Bit Rate:

  • H.264: 3 kbps – 16,384 kbps

  • H.265: 3 kbps – 16,384 kbps


• Day/Night Mode: Auto (ICR) / Color / B/W

• WDR: 120 dB

• BLC / HLC: Supported

• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom

• Gain Control: Auto / Manual

• Noise Reduction: 3D NR

• Motion Detection: On/Off (4 rectangular areas)

• Region of Interest: 4 configurable areas

• Smart Illumination: Yes

• Smart Dual Light: Yes

• Defog: Yes

• Image Rotation: 0° / 90° / 180° / 270°

• Mirror: Supported

• Privacy Masking: 8 areas

• LDC: Supported

Audio

• Built-in Microphone: Yes

• Audio Compression: PCM, G.711a, G.711Mu, G.726, G.723

Alarm

• Alarm Events: Motion detection, video tampering, intrusion, tripwire, scene changing, audio detection, voltage detection, SMD, SD card exceptions, network exceptions, illegal access

Network

• Network Port: RJ-45 (10/100 Base-T)

• SDK / API: Supported

• Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, RTSP, RTP, RTCP, FTP, SFTP, SMTP, DHCP, DNS, DDNS, QoS, NTP, SNMP, UPnP, P2P

• Interoperability: ONVIF Profile S / G / T / M, CGI

• Max Users: 20 (total bandwidth 64 Mbps)

Storage

• Storage Media: Micro SD card (up to 512 GB), FTP, SFTP, NAS

Software & Access

• Browser: IE11, Chrome, Firefox

• Management Software: Smart PSS Lite, DSS, DMSS, DoLynk Care

• Mobile Client: iOS, Android

Security

• Security Features: Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certificate support, HTTPS, 802.1x, trusted boot, trusted execution, trusted upgrade

Power

• Power Supply: 12 VDC / PoE (802.3af)

• Dual Power Backup: Device continues operating if one power source is disconnected

• Power Consumption:

  • Basic: 3.7 W (12 VDC), 5.3 W (PoE)

  • Max: 7.4 W (12 VDC), 9.5 W (PoE)

Environment

• Operating Temperature: –40 °C to +60 °C

• Operating Humidity: ≤ 95% RH, non-condensing

• Storage Temperature: –40 °C to +60 °C

• Storage Humidity: ≤ 95% RH, non-condensing

Physical

• Protection Rating: IP67

• Casing Material: Metal

• Dimensions: 105.5 mm × Φ122.0 mm

• Net Weight: 0.53 kg

• Gross Weight: 0.71 kg

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

6MP WizColor TiOC PRO Fixed-focal Eyeball WizSense Network Camera

Overview

• 1/1.8" CMOS image sensor with ultra-low illumination and high-definition imaging

• Maximum resolution 6 MP (3288 × 1850) at 25/30 fps

• Supports H.265 / H.264 video compression with ultra-low bitrate

• Built-in multi-core dual illuminator (IR + warm light) with up to 30 m range

• Sound and light active deterrence with red and blue warning lights

• SMD 4.0, AI SSA, and one-tap arming/disarming

• IP67 weather protection

• Power via 12 VDC or PoE

• Datasheet

Key Features

• WizColor technology for superior colour imaging in low-light environments

• Intelligent perimeter protection with accurate human and vehicle classification

• Smart Dual Light with adaptive illumination control

• Built-in dual microphones and 1-channel speaker supporting two-way audio

• Supports Micro SD card up to 512 GB

• 120 dB WDR for high-contrast scenes

Camera

• Image Sensor: 1/1.8" CMOS

• Max. Resolution: 3288 (H) × 1850 (V)

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual, 1/3 s – 1/100,000 s

• Min. Illumination:

  • 0.0002 lux @ F1.0 (Color, 30 IRE)

  • 0.0001 lux @ F1.0 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• S/N Ratio: > 56 dB

• ROM: 256 MB

• RAM: 1 GB

Illumination

• IR Distance: Up to 30 m (98.43 ft)

• Warm Light Distance: Up to 30 m (98.43 ft)

• Illuminator Type: Multi-core (IR + warm light)

• Illuminator Control: Auto / Manual

• Illuminator Quantity: 2

Lens

• Lens Type: Fixed-focal

• Lens Mount: M16

• Focal Length Options: 2.8 mm, 3.6 mm

• Max. Aperture: F1.0

• Iris Control: Fixed

Field of View

• 2.8 mm: Horizontal 109°, Vertical 59°, Diagonal 131°

• 3.6 mm: Horizontal 93°, Vertical 50°, Diagonal 111°

Close Focus Distance

• 2.8 mm: 3.2 m (10.50 ft)

• 3.6 mm: 4.4 m (14.44 ft)

DORI Performance

• 2.8 mm:

  • Detect: 70.2 m

  • Observe: 28.1 m

  • Recognize: 14.0 m

  • Identify: 7.0 m

• 3.6 mm:

  • Detect: 85.6 m

  • Observe: 34.3 m

  • Recognize: 17.1 m

  • Identify: 8.6 m

DORI (EN-62676-4) values are for reference only and do not represent intelligent function distances.

Intelligent Functions

• Perimeter Protection: Intrusion, tripwire, stay detection, loitering detection (human and vehicle classification)

• Face Detection (full image): Face detection, snapshot, snapshot optimisation, face enhancement, face angle filtering

• SMD: SMD 4.0

• AcuPick: Deep-learning based target search for people and motor vehicles

• AI SSA: Adaptive scene-based image optimisation

• Smart Search: Works with Smart NVR for intelligent event search and playback

Video

• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)

• AI Coding: AI H.265, AI H.264 (Smart H.265+ / H.264+)

• Video Frame Rate:

  • Main Stream: 3288 × 1850 @ 1–25/30 fps

  • Sub Stream: 1920 × 1080 @ 1–25/30 fps

  • Third Stream: 1920 × 1080 @ 1–25/30 fps

• Stream Capability: 3 streams

• Bit Rate Control: CBR / VBR / ABR

• Video Bit Rate:

  • H.264: 3 kbps – 16,384 kbps

  • H.265: 3 kbps – 16,384 kbps


• Day/Night Mode: Auto (ICR) / Color / B/W

• WDR: 120 dB

• BLC / HLC: Supported

• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Smart Illumination: Yes

• Smart Dual Light: Yes

• Defog: Yes

• Image Rotation: 0° / 90° / 180° / 270°

• Mirror: Supported

• Privacy Masking: 8 areas

• LDC: Supported

Audio

• Built-in Microphone: Dual mic

• Built-in Speaker: Yes

• Max Power Consumption (Speaker): 2 W

• Max Sound Level: 110 dB at 10 cm

• Audio Compression: PCM, G.711a, G.711Mu, G.726, G.723

Alarm

• Alarm Events: Motion detection, video tampering, intrusion, tripwire, loitering detection, stay detection, face detection, scene change, audio detection, voltage detection, SMD, SD card exceptions, network exceptions

Network

• Network Port: RJ-45 (10/100 Base-T)

• Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, RTSP, RTP, RTCP, FTP, SFTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, P2P, ONVIF, Multicast, Bonjour, Auto Registration

• Interoperability: ONVIF Profile S / G / T / M, CGI

• Max Users: 20 (total bandwidth 64 Mbps)

Storage

• Micro SD Card: Supports up to 512 GB

• Storage Methods: FTP, SFTP, NAS

Interface

• Audio Input: 1-channel (RCA)

• Audio Output: 1-channel (RCA)

• Alarm Input: 1-channel (wet contact, 5 mA, 3–5 VDC)

• Alarm Output: 1-channel (wet contact, 300 mA, 12 VDC)

Power

• Power Supply: 12 VDC / PoE

• Power Consumption:

  • Basic: 4.1 W (12 VDC), 6 W (PoE)

  • Max: 8.2 W (12 VDC), 10 W (PoE)

• Dual Power Backup: Device continues operating if one power source is disconnected

Environment & Construction

• Operating Temperature: –40 °C to +60 °C

• Operating Humidity: ≤ 95%

• Protection Rating: IP67

• Casing Material: Metal

Dimensions & Weight

• Dimensions: Φ122.0 mm × 116.1 mm

• Net Weight: 0.8 kg

• Gross Weight: 1.0 kg

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

6MP WizColor TiOC PRO Fixed-focal Eyeball WizSense Network Camera

Overview

• 1/1.8" CMOS image sensor with ultra-low illumination and high-definition imaging

• Maximum resolution 6 MP (3288 × 1850) at 25/30 fps

• Supports H.265 / H.264 video compression with ultra-low bitrate

• Built-in multi-core dual illuminator (IR + warm light) with up to 30 m range

• Sound and light active deterrence with red and blue warning lights

• SMD 4.0, AI SSA, and one-tap arming/disarming

• IP67 weather protection

• Power via 12 VDC or PoE

• Datasheet

Key Features

• WizColor technology for superior colour imaging in low-light environments

• Intelligent perimeter protection with accurate human and vehicle classification

• Smart Dual Light with adaptive illumination control

• Built-in dual microphones and 1-channel speaker supporting two-way audio

• Supports Micro SD card up to 512 GB

• 120 dB WDR for high-contrast scenes

Camera

• Image Sensor: 1/1.8" CMOS

• Max. Resolution: 3288 (H) × 1850 (V)

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual, 1/3 s – 1/100,000 s

• Min. Illumination:

  • 0.0002 lux @ F1.0 (Color, 30 IRE)

  • 0.0001 lux @ F1.0 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• S/N Ratio: > 56 dB

• ROM: 256 MB

• RAM: 1 GB

Illumination

• IR Distance: Up to 30 m (98.43 ft)

• Warm Light Distance: Up to 30 m (98.43 ft)

• Illuminator Type: Multi-core (IR + warm light)

• Illuminator Control: Auto / Manual

• Illuminator Quantity: 2

Lens

• Lens Type: Fixed-focal

• Lens Mount: M16

• Focal Length Options: 2.8 mm, 3.6 mm

• Max. Aperture: F1.0

• Iris Control: Fixed

Field of View

• 2.8 mm: Horizontal 109°, Vertical 59°, Diagonal 131°

• 3.6 mm: Horizontal 93°, Vertical 50°, Diagonal 111°

Close Focus Distance

• 2.8 mm: 3.2 m (10.50 ft)

• 3.6 mm: 4.4 m (14.44 ft)

DORI Performance

• 2.8 mm:

  • Detect: 70.2 m

  • Observe: 28.1 m

  • Recognize: 14.0 m

  • Identify: 7.0 m

• 3.6 mm:

  • Detect: 85.6 m

  • Observe: 34.3 m

  • Recognize: 17.1 m

  • Identify: 8.6 m

DORI (EN-62676-4) values are for reference only and do not represent intelligent function distances.

Intelligent Functions

• Perimeter Protection: Intrusion, tripwire, stay detection, loitering detection (human and vehicle classification)

• Face Detection (full image): Face detection, snapshot, snapshot optimisation, face enhancement, face angle filtering

• SMD: SMD 4.0

• AcuPick: Deep-learning based target search for people and motor vehicles

• AI SSA: Adaptive scene-based image optimisation

• Smart Search: Works with Smart NVR for intelligent event search and playback

Video

• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)

• AI Coding: AI H.265, AI H.264 (Smart H.265+ / H.264+)

• Video Frame Rate:

  • Main Stream: 3288 × 1850 @ 1–25/30 fps

  • Sub Stream: 1920 × 1080 @ 1–25/30 fps

  • Third Stream: 1920 × 1080 @ 1–25/30 fps

• Stream Capability: 3 streams

• Bit Rate Control: CBR / VBR / ABR

• Video Bit Rate:

  • H.264: 3 kbps – 16,384 kbps

  • H.265: 3 kbps – 16,384 kbps


• Day/Night Mode: Auto (ICR) / Color / B/W

• WDR: 120 dB

• BLC / HLC: Supported

• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Smart Illumination: Yes

• Smart Dual Light: Yes

• Defog: Yes

• Image Rotation: 0° / 90° / 180° / 270°

• Mirror: Supported

• Privacy Masking: 8 areas

• LDC: Supported

Audio

• Built-in Microphone: Dual mic

• Built-in Speaker: Yes

• Max Power Consumption (Speaker): 2 W

• Max Sound Level: 110 dB at 10 cm

• Audio Compression: PCM, G.711a, G.711Mu, G.726, G.723

Alarm

• Alarm Events: Motion detection, video tampering, intrusion, tripwire, loitering detection, stay detection, face detection, scene change, audio detection, voltage detection, SMD, SD card exceptions, network exceptions

Network

• Network Port: RJ-45 (10/100 Base-T)

• Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, RTSP, RTP, RTCP, FTP, SFTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, P2P, ONVIF, Multicast, Bonjour, Auto Registration

• Interoperability: ONVIF Profile S / G / T / M, CGI

• Max Users: 20 (total bandwidth 64 Mbps)

Storage

• Micro SD Card: Supports up to 512 GB

• Storage Methods: FTP, SFTP, NAS

Interface

• Audio Input: 1-channel (RCA)

• Audio Output: 1-channel (RCA)

• Alarm Input: 1-channel (wet contact, 5 mA, 3–5 VDC)

• Alarm Output: 1-channel (wet contact, 300 mA, 12 VDC)

Power

• Power Supply: 12 VDC / PoE

• Power Consumption:

  • Basic: 4.1 W (12 VDC), 6 W (PoE)

  • Max: 8.2 W (12 VDC), 10 W (PoE)

• Dual Power Backup: Device continues operating if one power source is disconnected

Environment & Construction

• Operating Temperature: –40 °C to +60 °C

• Operating Humidity: ≤ 95%

• Protection Rating: IP67

• Casing Material: Metal

Dimensions & Weight

• Dimensions: Φ122.0 mm × 116.1 mm

• Net Weight: 0.8 kg

• Gross Weight: 1.0 kg

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Key Features:

• Slim & Lightweight Design

• IR Illumination & Night Vision

• Two-Way Audio & App Voice Call

• Remote Management

  • Manage via platform

  • Voice call between App and door station

• Multiple Unlock Methods

  • Card unlock

  • Indoor monitor unlock

  • Remote unlock via App

• Weather Resistance

  • IP65 rated (Silicone sealant required—refer to quick start guide)

• Card Support

  • Stores up to 10,000 cards

• Power & Connectivity

  • Standard PoE power supply

  • Wireless network supported

• Lock Control

  • Supports control of 2 locks

• Datasheet

System

• Main Processor: Embedded Processor

• Operating System: Embedded Linux OS

• Button Type: Mechanical

• Number of Buttons: 1

• Interoperability: ONVIF, CGI

• Network Protocols: IPv4, RTSP, UDP, DNS, P2P, RTP, TCP, SIP

Basic

• Camera: 1/2.8" 2MP CMOS (low illumination, WDR, color, IR)

• Field of View:

  • Horizontal: 125°

  • Vertical: 71°

  • Diagonal: 142°

• WDR: 120 dB

• Noise Reduction: 3D NR

• Video Compression: H.264, H.265

• Video Resolution:

  • Main stream: 720p, WVGA, D1, CIF

  • Sub stream: 1080p, WVGA, D1, QVGA, CIF

• Video Frame Rate:

  • PAL: 25 fps

  • NTSC: 30 fps

• Video Bit Rate: 256 Kbps – 8 Mbps

• Light Compensation: Auto IR

• Day/Night Mode: Auto (ICR) / Color / B/W

Audio

• Compression: G.711a, G.711u, PCM

• Audio Input: 1

• Audio Output: Built-in speaker

• Audio Mode: Two-way audio

• Audio Enhancement: Echo suppression, digital noise reduction

• Audio Bit Rate: 16 KHz, 16 Bit

Functions

• Communication Mode: Full digital

• Unlock Methods: Card, App, Indoor Monitor

• Card Type: IC Card

• Auto Snapshot: Supported

• Leave Videos: Yes (with SD card in door station or indoor monitor)

• Wi-Fi: Supported

• Wireless Standards: IEEE 802.11b/g/n

• Frequency Range: 2.4 GHz

• Storage: Micro SD card (up to 256 GB)

• Web Configuration: Yes

Performance

• Card Reading Distance: 0 – 4.3 cm (0"–1.69")

• Local Card Issuance: Supported

• Casing Material: PC + Acrylic

Capacity

• Card Capacity: 10,000

Ports

• RS-485: 1

• Alarm Input: 1

• Alarm Output: 1

• Power Output: 1 port, 12 V / 200 mA

• Exit Button: 1

• Door Status Detection: 1

• Lock Control: 1 port (Normally Closed by default)

• Network Port: 1 × 10/100 Mbps

Alarm

• Tamper Alarm: Yes

General

• Appearance Color: Black plate with silvery frames

• Power Supply: 12 VDC, 1 A / Standard PoE

• Power Adapter: Optional

• Installation Method: Surface Mount

• Certifications: CE

• Included Accessories: Alarm power ribbon cable, brackets

Physical

• Dimensions: 150.0 mm × 100.0 mm × 25.4 mm (5.91" × 3.94" × 1.00")

• Protection Rating: IP65 (Silicone sealant required – see Quick Start Guide)

• Gross Weight: 510 g (1.12 lb)

• Anti-Corrosion Level: Basic Protection

Environmental

• Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F)

• Operating Humidity: 10%–90% RH (non-condensing)

• Environment: Outdoor

• Operating Altitude: Up to 3000 m (9842.52 ft)

• Power Consumption: ≤ 1 W (standby), ≤ 7 W (working)

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Key Features:

• Slim & Lightweight Design

• IR Illumination & Night Vision

• Two-Way Audio & App Voice Call

• Remote Management

  • Manage via platform

  • Voice call between App and door station

• Multiple Unlock Methods

  • Card unlock

  • Indoor monitor unlock

  • Remote unlock via App

• Weather Resistance

  • IP65 rated (Silicone sealant required—refer to quick start guide)

• Card Support

  • Stores up to 10,000 cards

• Power & Connectivity

  • Standard PoE power supply

  • Wireless network supported

• Lock Control

  • Supports control of 2 locks

• Datasheet

System

• Main Processor: Embedded Processor

• Operating System: Embedded Linux OS

• Button Type: Mechanical

• Number of Buttons: 1

• Interoperability: ONVIF, CGI

• Network Protocols: IPv4, RTSP, UDP, DNS, P2P, RTP, TCP, SIP

Basic

• Camera: 1/2.8" 2MP CMOS (low illumination, WDR, color, IR)

• Field of View:

  • Horizontal: 125°

  • Vertical: 71°

  • Diagonal: 142°

• WDR: 120 dB

• Noise Reduction: 3D NR

• Video Compression: H.264, H.265

• Video Resolution:

  • Main stream: 720p, WVGA, D1, CIF

  • Sub stream: 1080p, WVGA, D1, QVGA, CIF

• Video Frame Rate:

  • PAL: 25 fps

  • NTSC: 30 fps

• Video Bit Rate: 256 Kbps – 8 Mbps

• Light Compensation: Auto IR

• Day/Night Mode: Auto (ICR) / Color / B/W

Audio

• Compression: G.711a, G.711u, PCM

• Audio Input: 1

• Audio Output: Built-in speaker

• Audio Mode: Two-way audio

• Audio Enhancement: Echo suppression, digital noise reduction

• Audio Bit Rate: 16 KHz, 16 Bit

Functions

• Communication Mode: Full digital

• Unlock Methods: Card, App, Indoor Monitor

• Card Type: IC Card

• Auto Snapshot: Supported

• Leave Videos: Yes (with SD card in door station or indoor monitor)

• Wi-Fi: Supported

• Wireless Standards: IEEE 802.11b/g/n

• Frequency Range: 2.4 GHz

• Storage: Micro SD card (up to 256 GB)

• Web Configuration: Yes

Performance

• Card Reading Distance: 0 – 4.3 cm (0"–1.69")

• Local Card Issuance: Supported

• Casing Material: PC + Acrylic

Capacity

• Card Capacity: 10,000

Ports

• RS-485: 1

• Alarm Input: 1

• Alarm Output: 1

• Power Output: 1 port, 12 V / 200 mA

• Exit Button: 1

• Door Status Detection: 1

• Lock Control: 1 port (Normally Closed by default)

• Network Port: 1 × 10/100 Mbps

Alarm

• Tamper Alarm: Yes

General

• Appearance Color: Black plate with silvery frames

• Power Supply: 12 VDC, 1 A / Standard PoE

• Power Adapter: Optional

• Installation Method: Surface Mount

• Certifications: CE

• Included Accessories: Alarm power ribbon cable, brackets

Physical

• Dimensions: 150.0 mm × 100.0 mm × 25.4 mm (5.91" × 3.94" × 1.00")

• Protection Rating: IP65 (Silicone sealant required – see Quick Start Guide)

• Gross Weight: 510 g (1.12 lb)

• Anti-Corrosion Level: Basic Protection

Environmental

• Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F)

• Operating Humidity: 10%–90% RH (non-condensing)

• Environment: Outdoor

• Operating Altitude: Up to 3000 m (9842.52 ft)

• Power Consumption: ≤ 1 W (standby), ≤ 7 W (working)

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

• IP Villa Door Station

• 2MP CMOS camera

• Mechanical button

• Night vision & voice indicator

• 160° angle of view

• Group call

• Aluminium alloy plate

• IK07 & IP65 (Apply silicon gel to gaps between the device and the wall

•  Support standard PoE

• Product specification

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

• IP Villa Door Station

• 2MP CMOS camera

• Mechanical button

• Night vision & voice indicator

• 160° angle of view

• Group call

• Aluminium alloy plate

• IK07 & IP65 (Apply silicon gel to gaps between the device and the wall

•  Support standard PoE

• Product specification

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

• Product specification

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

• Product specification

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

• Product specification

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

• Product specification

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

• 7" TFT display

• Color video & audio intercom

• 2 indicator lights

• Sufrace mounted

• Product specification

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

• 7" TFT display

• Color video & audio intercom

• 2 indicator lights

• Sufrace mounted

• Product specification

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

• 7" TFT display

• Color video & audio intercom

• 2 indicator lights

• Surface mounted

• Product specification

Warranty: 3 Year Dahua ANZ Manufacturer Warranty
