The Hills Reliance 48 zone LCD Code pad NX-148 is compatible with the the NX series alarm system.

Model: NX-148

Easy to use NX alarm code pad with large backlit LCD display code pad for NX / Reliance alarm panels. Full alphanumeric LCD display. Customized text control up to 8 areas/partitions

Code Pad Features:

• Large backlit LCD display
• Able to display all 48 zones
• Multi-partition control

Hills NX Series Code Pad 8 Zone LED Code Pad

• 8 Zone LED keypad
• Backlit keys
• Clear status light indicators
• Easy of Use
• Dedicated emergency keys
• Pre-programmed keys with a single touch

Hills NX Series Code Pad 8 Zone LED Code Pad

Designed for reliable protection and ease of use, Reliance 8 Zone LED keypads feature clear status light indicators and backlit keys. Dedicated emergency keys at the touch of a button, while pre-programmed keys allow users to perform common functions with a single touch.

Model: 1508

Features:

• 8 Zone LED keypad
• Backlit keys
• Clear status light indicators
• Easy of Use
• Dedicated emergency keys
• Pre-programmed keys with a single touch

Hills ComNav is a remote access integration module for the Hills Reliance security alarm system. It allows you to easily access your security alarm system via telephone or internet anywhere in the world. Ever worry that you forgot to turn on your security system. Now with Hills ComNav you can easily phone your security system to check it's status and remotely turn it on or off.

Hills ComNav is a remote access integration module for the Hills Reliance security alarm system.

It allows you to easily access your security alarm system via telephone or internet anywhere in the world. Ever worry that you forgot to turn on your security system. Now with Hills ComNav you can easily phone your security system to check it's status and remotely turn it on or off.

Model: S2096A

Features:

• Remote access and control via smartphone and built-in web server
• Email, SMS and Voice notifications
• View event history (up to 185 events)
• Dynamic Host Configuration Protocol (DHCP) – connection to your network made easy
• Two onboard relays – controllable via App or web server
• We recommend to use licensed security installer to install this part on the alarm system.
• Alarm INSTALLER code is required for programming this part on the alarm system.
• Not recommended for DIY

The Hikvision HIK-PM1-I8O2-HW is a wired zone expander for the AX Hybrid Pro control panel. The expander has 8 on-board zones and 2 on-board collector outputs. The zone expander communicates with the control panel with high-speed RS-485 connections. The standard allows for a connection distance of 900m, and a secondary connection port allows for multiple zone expanders to be set up in cascade mode.

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

• 1 x Hikvision Hybrid Pro Hardwired Controller, 8-64 Zones, 45 Users, 8 Areas, 4-64 Outputs
• 1 x Hikvision LCD Keypad with Card Reader to suit Hardwired Alarm Controller
•  1 x Hikvision Outdoor Siren Strobe
• 3 x Hikvision PIR Pet Immune Detector with EOLR
• 1 x 12V 7.0Ah Sealed Lead Acid Battery
• 1 x Tactical Power Supply, 14.3V DC, 2.5A, Plug Pack, Required for Hikvision Hybrid Alarm

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

DS-PDP15P-EG2-WB Hikvision Ax Pro Wireless PIR Detector

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

Hikvision HIK-PDBG8-HW glass break detector features an omnidirectional high-quality microphone, tamper protection, RF supervision and an 8m range.

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

ARD323-W2(S) Wireless Door Detector

• Signal Strength Detection
• Low Battery Alarm
• Temperature Measurement
• Frequency Hopping & Two-Way Communication – Ensures stable communication.
• Cloud Update & Auto-Recovery – Prevents update failures.


Specifications

Port & Indicators

• Indicator Light: 1 × Green Alarm Indicator
• Button: 1 × Power Button

Functions

• Tamper Alarm: Yes
• Remote Upgrade: Cloud Update
• Low Battery Alarm: Yes
• Test Mode: Yes
• Signal Strength Detection: Yes

Wireless Communication

• Carrier Frequency: 433.1 MHz–434.6 MHz
• Communication Distance: Up to 1,000 m (3,280.84 ft) in open space
• Communication Mechanism: Two-way
• Frequency Hopping: Yes
• Encryption Mode: AES128

Power & Consumption

• Power Supply: CR123A Battery
• Power Consumption: Max. 70 mW

Environmental Conditions

• Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
• Operating Humidity: 10%–90% (RH)

Physical Dimensions & Weight

• Product Dimensions: 100.2mm × 20.8mm × 20.3mm (3.94” × 0.82” × 0.80”) (L × W × H)
• Packaging Dimensions: 135.0mm × 98.5mm × 27.8mm (5.31" × 3.88" × 1.09") (L × W × H)
• Installation: Bracket Mount
• Net Weight: 70 g (0.15 lb)
• Gross Weight: 115 g (0.25 lb)

Certifications & Battery Life

• Certifications: CE
• Battery Life:
  • 4 years (External input type: NO)
  • 2 years (External input type: NC or Pulse)

Casing Material

• Material: PC + ABS

Temperature Measurement

• Measuring Range: –15 °C to +65 °C (+5 °F to +149 °F) (indoor)
• Precision: ±1 °C (±1.8 °F)
• Resolution: 1 °C (33.8 °F)

Detection & Installation

• Sensor: Reed Switch
• Recommended Scenario: Non-metal doors
• Movement Distance: < 40 mm (1.57")

Peripherals

• External Zone: 1-channel dry contact input

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

ARA43-W2

Alarm Repeater

• Connects up to 32 peripherals for expanded coverage.
• Two-way RF communication ensures reliable signal transmission.
• LED indicator displays device status.
• Supports manual and auto pairing, extending RF distance for your security system.
• Auto-switching dual antennas reduce blind spots.
• Cloud update with auto recovery in case of update failure.
• Built-in battery backup keeps the device running for over 35 hours during power failures.

Specifications

Input/Output

• Wireless Zone: Supports up to 32 wireless peripherals

Port

• Storage Battery: Built-in lithium battery
• Indicator Light: 1 LED for pairing and working status
• Power Switch: 1 × power switch

Function

• Pairing Mode: Auto / Manual
• Tamper Alarm: Yes
• Remote Update: Cloud update
• Power Failure Protection: Retains configured parameters
• External Power Disconnection Detection: Yes
• Low Battery Alarm: Yes
• Signal Strength Detection: Yes

Wireless

• Carrier Frequency: 433.1 MHz–434.6 MHz
• Transmitter Power (EIRP): Limit 10 mW
• Communication Distance: Up to 1000 m (3280.84 ft) in open space
• Communication Mechanism: Two-way
• Encryption Mode: AES128
• Frequency Hopping: Yes

General

• Power Supply: 12 VDC, 1.5 A
• Battery Life: Standby time: 35 hours
• Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
• Operating Humidity: 10%–90% RH
• Product Dimensions: 163.0 mm × 163.0 mm × 32.0 mm (6.42" × 6.42" × 1.26")
• Packaging Dimensions: 219.0 mm × 187.0 mm × 91.0 mm (8.62" × 7.36" × 3.58")
• Installation: Wall mount / Desktop
• Net Weight: 0.32 kg (0.71 lb)
• Gross Weight: 0.74 kg (1.63 lb)
• Certifications: CE
• Casing Material: PC + ABS

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

Alarm System back up battery, 12 volt DC, 5 amp suitable for Hills Reliance Security alarm systems.

Model: PS-1250

Back up power supply battery features, absorbent Glass Mat (AGM) technology for superior performance • Valve regulated, spill proof construction allows safe operation in any position • Power/volume ratio yielding unrivaled energy density • Rugged impact resistant ABS case and cover(UL94-HB) • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified • U.L. recognized under file number MH 20845

6 Easy Steps to change a security alarm battery

Step 1
Turn off the electrical supply to your system.

Step 2
If your alarm system is monitored, contact the control room to let them know you are going to change the backup battery. This will prevent the control room sending a patrol company to your premises.

Step 3
Locate the alarm system battery in the control panel. Typically the alarm system battery will be installed in a walk-in robe, cupboard or even a spare bedroom wardrobe.

Step 4
Open the control panel box. You can usually do this with a control panel key (sometimes left on top of the control box), or you may need to unscrew the cover. When you open the cover, your alarm may go off. Make sure you have your code on hand to turn off your system if this occurs.

Step 5
Disconnect the battery. Remove both the black and red wires from the battery terminals. You should be able to do so gently by hand, or you may prefer to use pliers. (To avoid receiving a shock, make sure you do not touch the battery terminals or open-end of the wire connectors with any metal implement.)

Once disconnected, remove the old battery and dispose of it responsibly.

Step 6
Connect the new battery, making sure you are using a battery of the same size and voltage as the original. Start by removing any plastic protectors from the new battery, then connect the wires.

Ensure the battery is not put in backwards—the printed information should be facing towards you. Insert the RED wire in the RED battery terminal, and the BLACK wire in the BLACK. Ensure the connectors are tightly connected to the battery terminals. If you have a multimeter, use it to check that the battery is charging. Close the control panel and lock.

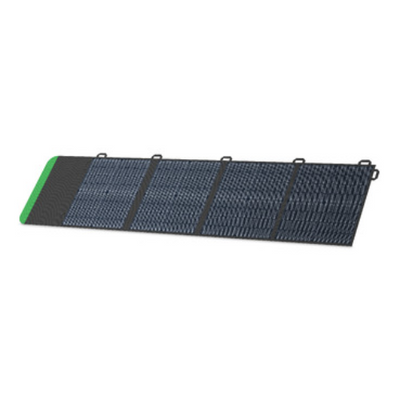

APC OffGrid Portable Solar Panel, 100W

• Brand: APC
• Part Number: PSP100
• Type: Line Interactive UPS
• Warranty: 5 Year Manufacturer Warranty
• Weight: 4.7 kg

6 MP AI Fixed Turret Network Camera

Warranty: 3 Year HiLook (by Hikvision) Manufacturer Warranty

8MP WizColor TiOC PRO Fixed-focal Eyeball WizSense Network Camera

Overview

• 8 MP 1/1.8" CMOS image sensor with low luminance and high-definition imaging

• Maximum resolution 8 MP (3840 × 2160) at 25/30 fps

• H.265 / H.264 video compression with ultra-low bitrate

• Built-in multi-core dual light (IR + warm light) with up to 30 m illumination

• Advanced encoding: ROI, Smart H.264+/H.265+, AI H.264/H.265

• Image enhancements: rotation mode, 120 dB WDR, 3D NR, HLC, BLC, digital watermarking

• Intelligent monitoring: intrusion, tripwire (human/vehicle classification), stay detection, loitering detection, face detection (full image)

• Abnormality detection: motion, privacy masking, scene change, audio detection, SD card and network exceptions, voltage detection

• I/O and storage: Alarm 1 in/1 out, Audio 1 in/1 out, Micro SD up to 512 GB

• Built-in dual microphones and 1-channel speaker with two-way audio

• Sound & light alarm (red and blue warning lights)

• SMD 4.0, AI SSA, and one-tap arming/disarming

• Power via 12 VDC or PoE

• IP67 weather protection

• SMD zones can be configured within warm light areas for alarm triggering

• Datasheet

Camera

• Image Sensor: 1/1.8" CMOS

• Max. Resolution: 3840 (H) × 2160 (V)

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual, 1/3 s – 1/100,000 s

• Min. Illumination:

  • 0.0004 lux @ F1.0 (Color, 30 IRE)

  • 0.0002 lux @ F1.0 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• S/N Ratio: > 56 dB

• ROM: 256 MB

• RAM: 1 GB

Illumination

• IR Distance: Up to 30 m (98.43 ft)

• Warm Light Distance: Up to 30 m (98.43 ft)

• Illuminator Type: Multi-core (IR + warm light)

• Illuminator Control: Auto / Manual

• Illuminator Quantity: 2

Angle Adjustment

• Pan: 0° – 360°

• Tilt: 0° – 78°

• Rotation: 0° – 360°

Lens

• Lens Type: Fixed-focal

• Lens Mount: M16

• Focal Length Options: 2.8 mm, 3.6 mm

• Max. Aperture: F1.0

• Iris Control: Fixed

Field of View

• 2.8 mm: Horizontal 109°, Vertical 59°, Diagonal 131°

• 3.6 mm: Horizontal 93°, Vertical 50°, Diagonal 111°

Close Focus Distance

• 2.8 mm: 3.2 m (10.50 ft)

• 3.6 mm: 4.4 m (14.44 ft)

DORI Performance

• 2.8 mm:

  • Detect: 82.0 m (269.03 ft)

  • Observe: 32.8 m (107.64 ft)

  • Recognize: 16.4 m (53.81 ft)

  • Identify: 8.2 m (26.90 ft)

• 3.6 mm:

  • Detect: 100.0 m (328.08 ft)

  • Observe: 40.0 m (131.23 ft)

  • Recognize: 20.0 m (65.62 ft)

  • Identify: 10.0 m (32.81 ft)

DORI (EN-62676-4) values are reference only and do not represent intelligent function distances.

Intelligent Functions

• IVS (Perimeter Protection): Intrusion, tripwire, stay detection, loitering detection (human/vehicle classification)

• Face Detection (Full Image): face detection, snapshot, snapshot optimisation, face enhancement, snapshot strategies, face angle filtering, optimisation time settings

• SMD: SMD 4.0

• AcuPick: AI-based target search for people and motor vehicles (with compatible back-end devices)

• AI SSA: Intelligent scene self-adaptation using deep learning

• Smart Search: Works with Smart NVR for intelligent event search, extraction, and event video merging

Video

• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)

• AI Coding: AI H.265, AI H.264 (Smart H.265+ / Smart H.264+)

• Video Frame Rate:

  • Main Stream: 3840 × 2160 @ 1–25/30 fps

  • Sub Stream: 1920 × 1080 @ 1–25/30 fps

  • Third Stream: 1920 × 1080 @ 1–25/30 fps

• Stream Capability: 3 streams

• Supported Resolutions:

  • 8M (3840 × 2160), 6M (3200 × 1800), 5M (3072 × 1728)

  • 4M (2688 × 1520 / 2560 × 1440), 3M (2304 × 1296)

  • 1080p, 720p, D1, VGA, CIF

• Bit Rate Control: CBR / VBR / ABR

• Video Bit Rate:

  • H.264: 3 kbps – 16,384 kbps

  • H.265: 3 kbps – 16,384 kbps


• Day/Night Mode: Auto (ICR) / Color / B/W

• WDR: 120 dB

• BLC / HLC: Supported

• Scene Self-adaptation (SSA): Yes

• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Motion Detection: On/Off (4 rectangular areas)

• Region of Interest: 4 configurable areas

• Smart Illumination: Yes

• Smart Dual Light: Yes

• Defog: Yes

• Image Rotation: 0° / 90° / 180° / 270° (90°/270° supported at 2688 × 1520 and below)

• Mirror: Supported

• Privacy Masking: 8 areas

• LDC: Supported

Audio

• Built-in Microphone: Yes, built-in dual mic

• Built-in Speaker: Yes (max power 2 W; max sound level 110 dB at 10 cm)

• Audio Compression: PCM, G.711a, G.711Mu, G.726, G.723

• Two-way Audio: Supported (with audio input/output)

Alarm

• Alarm Events: No SD card, SD card full/error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, stay detection, loitering detection, face detection (full image), scene change, audio detection, voltage detection, SMD, security exceptions

• Alarm Input: 1 channel (wet contact, 5 mA, 3–5 VDC)

• Alarm Output: 1 channel (wet contact, 300 mA, 12 VDC)

Network

• Network Port: RJ-45 (10/100 Base-T)

• SDK / API: Supported

• Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Bonjour, Auto Registration

• Interoperability: ONVIF Profile S / G / T / M, CGI

• Max Users: 20 (total bandwidth 64 Mbps)

Storage

• Micro SD Card: Up to 512 GB

• Storage Methods: FTP, SFTP, NAS

Software & Access

• Browser: IE11, Chrome, Firefox

• Management Software: Smart PSS Lite, DSS, DMSS, DoLynk Care

• Mobile Client: iOS, Android

Security

• Security Features: Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certificate generation/import, Syslog, HTTPS, 802.1x, trusted boot, trusted execution, trusted upgrade

Power

• Power Supply: 12 VDC / PoE

• Dual Power Backup: If adapter and PoE are connected, disconnect one source — device continues operating (no restart)

• Power Consumption:

  • Basic: 4.1 W (12 VDC), 6 W (PoE)

  • Max (H.265+ / WDR / warm light / siren & light deterrence / intelligence on): 8.2 W (12 VDC), 10 W (PoE)

Environment & Physical

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)

• Operating Humidity: ≤ 95%

• Protection Rating: IP67

• Casing Material: Metal

• Dimensions: Φ122.0 mm × 116.1 mm

• Net Weight: 0.8 kg

• Gross Weight: 1.0 kg

Warranty: 3 Year Dahua ANZ Manufacturer Warranty

HILOOK WIRED ALARM POWER SUPPLY 15V 4A

Warranty: 3 Year HiLook (by Hikvision) Manufacturer Warranty

Metal Vandal-resistant Facial Recognition IP Villa Door Station

• 4.3-inch colorful LCD screen with 800 × 480 resolution
• 2 × 2 MP camera with IR supplement
• One-touch physical button for easier calls
• Standard PoE power supply
• IK08 & IP65 higher protection level
• Multiple authentication methods: Face, Pin code, Card, QR code, Bluetooth

Specification

System Parameters

• Operating System: Linux
• ROM: 4 GB
• RAM: 1 GB
• Processor: Embedded high-performance processor

Display Parameters

• Screen Size: 4.3-inch
• Operation Method: Capacitive touch screen
• Type: IPS
• Resolution: 800 × 480
• Luminance: 425 cd/m²

Video Parameters

• Lens: 2
• Resolution: 2 × 2 MP
• FOV: Horizontal: 88°, Vertical: 44°
• Wide Dynamic Range (WDR): Support 120 dB
• Supplement Light: IR light, up to 3 m
• Video Compression Standard:
  • Main stream and sub stream: H.264
  • Third stream: H.265

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Compression Standard: G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1
• Audio Output: 1 built-in loudspeaker
• Audio Compression Bitrate:
  • G.711u, G.711a, Opus: 64 kbps
  • G.722.1, G.726: 32 kbps
  • AAC-LD, AAC-LC: 16 kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• User Capacity: 20,000
• Face Capacity: 10,000
• Fingerprint Capacity: /
• Card Capacity: 100,000
• Message Capacity: /
• Linked Indoor Station Capacity: 500
• Sub Door Station Capacity: 16

Network Parameters

• Network Protocol: TCP/IP, RTSP
• Wi-Fi: IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth: Support: 2.0
• 3G/4G: /

Authentication

• Card Reading Frequency: 13.56 MHz
• Face Recognition Distance: 0.3 to 2 m
• Face Recognition Accuracy Rate: ≥ 99%
• Face Recognition Duration: ＜ 0.2 s per person

Device Interfaces

• Alarm Input: 4 (2 exit buttons and 2 door contacts by default)
• Network Interface: 1 RJ-45, 10/100 Mbps self-adaptive
• Tamper: 1
• Exit Button: 2
• RS-485: 1
• USB: /
• Wiegand: /
• TF Card: Reserved
• Lock Control: 2 relays, Max. 30 VDC 2 A, lock 2 needs secure module
• Door Contact Input: 2

General

• Button: 1 physical button
• Installation: Surface mounting
• Indicator: /
• Weight:
  • Net weight: 0.405 kg
  • Gross weight: 0.752 kg
• Protective Level: IP65, IK08
• Working Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Working Humidity: 10% to 90% (no-condensing)
• Dimension (W × H × D): 182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01")
• Battery: /
• Power Supply: 12 VDC, 1.5 A, IEEE802.3af, Standard PoE
• Application Environment: Outdoor
• Power Consumption: ≤ 6 W
• Language: English, French, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

Wireless Keyfob

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

Hikvision HIK-PDP18-HW PIR detector features motion detection, tamper protection, and RF supervision. It has an 18m range with pet immunity.

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

Access Controller

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

• High quality imaging with 8MP resolution
• 2.8mm Lens
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• False alarm reduction through human and vehicle target classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provides real-time security via built-in two-way audio
• Water and dust resistant (IP66)
• Specification Brochure Click on the PDF Icon :-

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

4K AcuSense Strobe Light and Audible Warning Varifocal Bullet Network Camera

Warranty: 3 Year Hikvision ANZ Manufacturer Warranty

8MP Dual Lens Stitched Wide Angle Smart Hybrid Light Fixed Turret Network Camera

Warranty: 3 Year HiLook (by Hikvision) Manufacturer Warranty

  HiLook 6MP 3 in 1 Network Turret Dome with 2 ways Audio & AI Black

• Specification Brochure Click on the PDF Icon :-

Warranty: 3 Year HiLook (by Hikvision) Manufacturer Warranty
