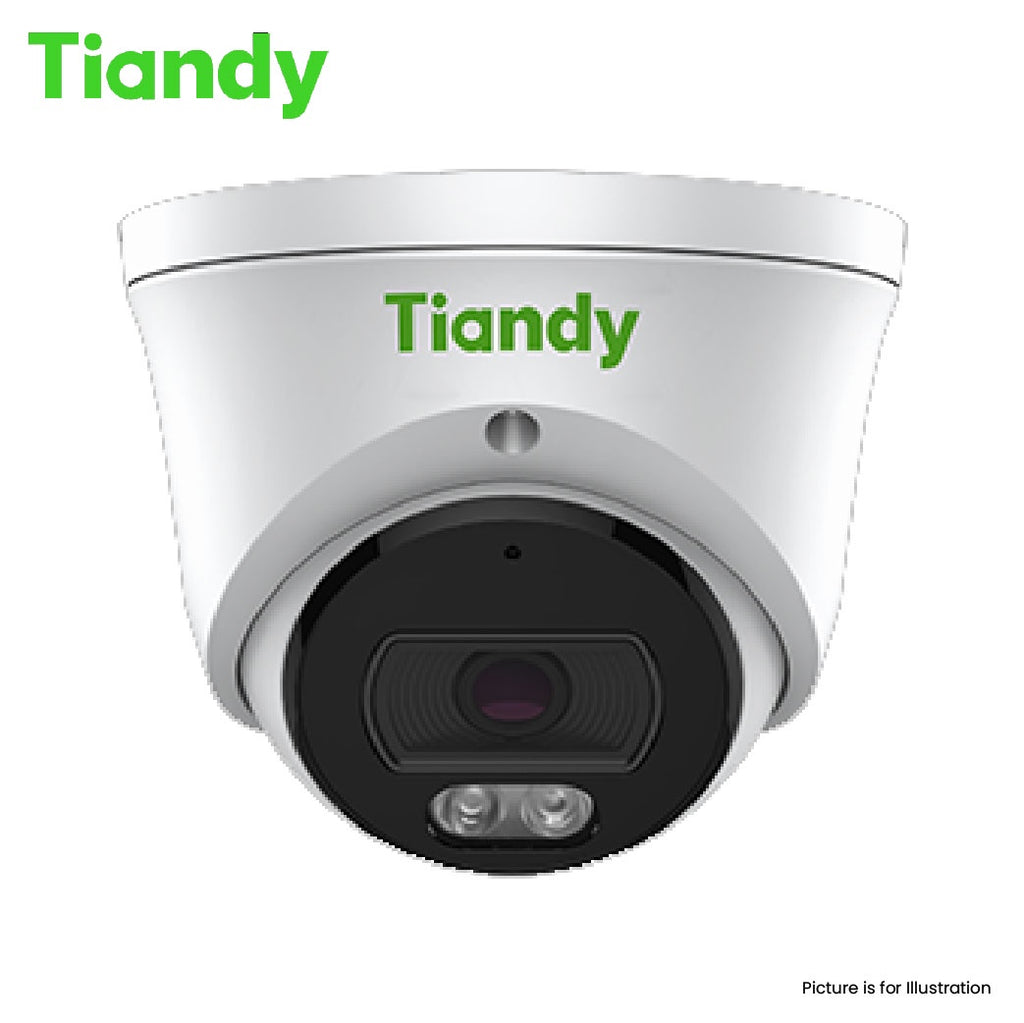

Tiandy 4MP Fixed Color Maker Turret Camera | TC-C34SP

Tiandy 4MP Fixed Color Maker Turret Camera | TC-C34SP
Regular price $209.00

Features:

  • Full Metal Housing
  • Up to 2560×1440@25fps
  • S+265/H.265/H.264
  • Min. illumination Color: 0.0004Lux@F1.6
  • 120dB WDR
  • 2 Warm lights, 15~20m
  • Support tripwire and perimeter
  • Built-in Mic, SD Card Slot, Reset Button
  • Operating Conditions -40℃~60℃, 0~95% RH
  • POE, IP67

Specifications:

Camera
Image Sensor 1/1.8" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.0004Lux@ (F1.6, AGC ON), B/W: 0Lux with LED on
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment pan 0~340°, tilt 0~75°, roate 0~360°
Lens
Lens Type Fixed
Focus 2.8mm
Lens Mount M12
Aperture F1.6, Fixed
FOV Horizontal field of view: 103.4°
Illuminator
IR LEDs N/A
IR Range N/A
Wavelength N/A
White LEDs/Warmlights 2 Warmlights, 15~20m
Compression Standard
Video Compression S+265/H.265/H.264
Video Bit Rate 32Kbps~6Mbps
Audio Compression G.711/G.711U/ADPCM
Audio Bit Rate 8K~48Kbps
Max. Resolution 2560×1440
Main Stream PAL: 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC: 25fps (2560×1440), 30fps (2304×1296, 1920×1080, 1280×720)
Sub Stream PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream N/A
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or

web browser

Image Enhancement BLC/3D DNR/HLC
ROI N/A
OSD 16×16, 32×32, 48×48, 64×64, adaptable size, Letters Such as Week, Date, Time,

Total 3 Regions

Picture Overlay N/A
Privacy Mask Yes, 4 regions
Smart Defog Yes
Feature
Alarm Trigger  Motion Detection, Mask Alarm, IP Address Conflict
Video Analytics Tripwire, Perimeter
Early Warning(EW) N/A
Network
ANR Yes(Only Support Tiandy ANR NVR)
Protocols TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, IPV4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP
System Compatibility ONVIF (PROFILE S/T/G), SDK, CGI (IE), P2P(Mutually exclusive with Profile G)
Remote Connection ≤7
Client Easy7, EasyLive
Web Version Web5
Interface
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O Mic in
Alarm I/O N/A
Reset Button Yes
On-board storage  Built-in MicroSD card slot, up to 512 GB
General
Firmware Version -
Web Client Language 15 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese,Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese
Operating Conditions -40℃~60℃, 0~95% RH
Power Supply DC 12V±25%, PoE (802.3af)
Power Consumption MAX: 8W (12V) MAX: 9W (PoE)
Protection IP67, Lightning protection, surge protection and voltage transient protection

meets EN 55035:2017

Heater N/A
Dimensions  Φ132×100mm (Φ5.2×3.94inch)
Weight 0.65Kg (1.4
